Components And Components Location: Components

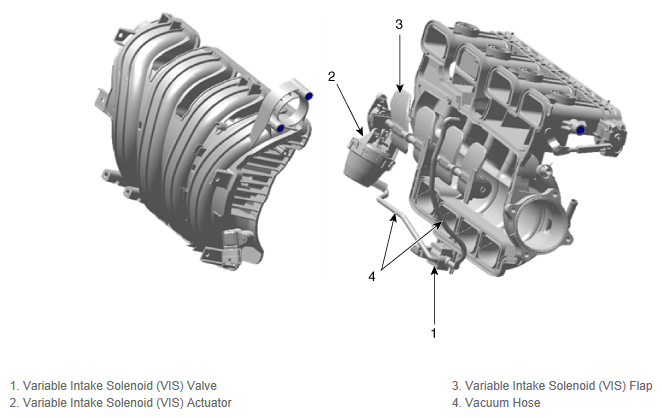

Fig 1: Variable Intake Manifold Solenoid Valve Components
G12146924Courtesy of KIA MOTORS AMERICA, INC.
