Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the variable intake solenoid valve connector (A) and vacuum hoses (B).
  3. Remove the variable intake solenoid valve after loosening the mounting bolt from the surge tank.

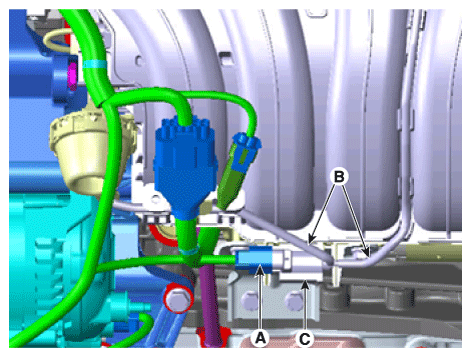

Fig 1: Disconnecting Variable Intake Solenoid Valve Connector And Vacuum Hoses
G12146929Courtesy of KIA MOTORS AMERICA, INC.
