Accelerator Position Sensor (APS): Specifications: Specification

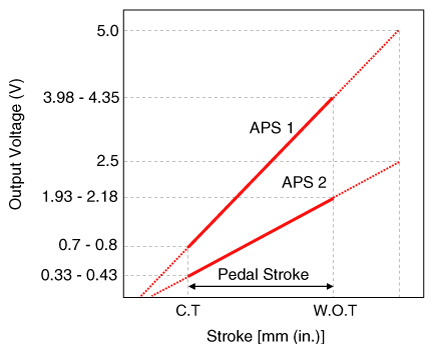

ACCELERATOR POSITION SENSOR VOLTAGE SPECIFICATIONS
| Accelerator Position |
Output Voltage (V) [Vref = 5V] |
| APS1 |
APS2 |
| C. T |
0.7 - 0.8 |
0.33 - 0.43 |
| W.O.T |
3.98 - 4.35 |
1.93 - 2.18 |
 Courtesy of KIA MOTORS AMERICA, INC.
|
