Fuel Tank Pressure Sensor (FTPS): Specifications: Specification

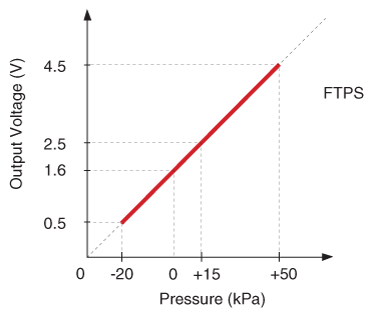

FUEL TANK PRESSURE SENSOR SPECIFICATIONS

Pressure [kPa (kgf/cm2 , psi)] Output Voltage (V) [Vref = 5V]
-20 0.5
0 1.6
15 2.5
50 4.5
G12347312Courtesy of KIA MOTORS AMERICA, INC.
