Repair Procedures: Inspection

  1. Disconnect the ignition switch connector (A) and key warning switch connector (B) from under the steering column.

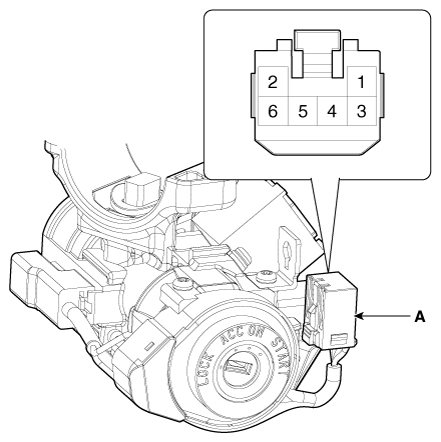

    G12351377Courtesy of KIA MOTORS AMERICA, INC.

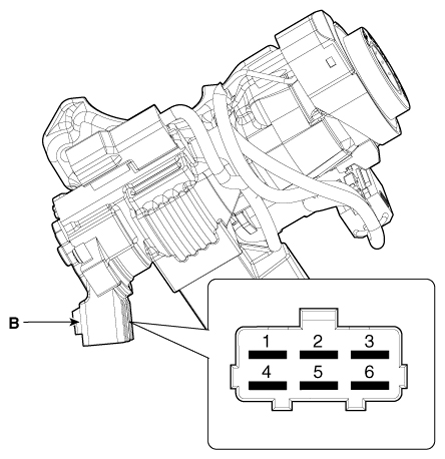

    G12351378Courtesy of KIA MOTORS AMERICA, INC.
  2. Check for continuity between the terminals.
  3. If continuity is not as specified, replace the switch.

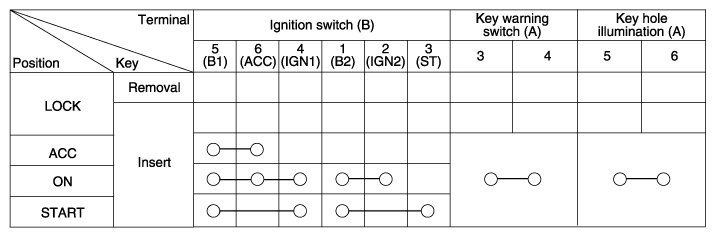

G12351379Courtesy of KIA MOTORS AMERICA, INC.
