Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the purge control solenoid valve connector and vapor hoses.
  3. Remove the purge control solenoid valve (A).

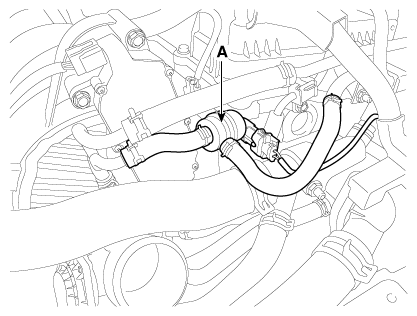

Fig 1: Removing Purge Control Solenoid Valve
G12146919Courtesy of KIA MOTORS AMERICA, INC.
