Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Remove the steering column upper & Lower shroud.
  4. Disconnect the ignition switch connector (A) and key warning immobilizer connector (B).

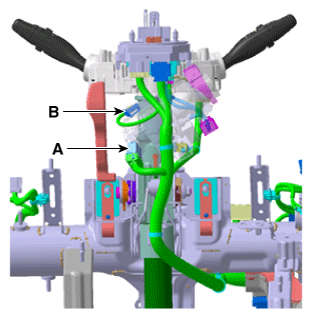

    Fig 1: Disconnecting Ignition Switch Connector And Key Warning Immobilizer Connector
    G12143160Courtesy of KIA MOTORS AMERICA, INC.
  5. If the key lock cylinder (A) needs to be removed, remove it after pushing lock pin with key in ACC.

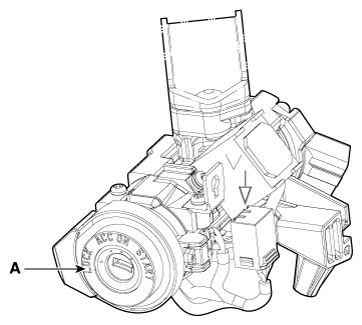

    Fig 2: Removing Key Lock Cylinder
    G12143161Courtesy of KIA MOTORS AMERICA, INC.
  6. Install in the reverse order of removal.
