Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the air duct (A).
    Fig 1: Removing Air Duct
    G12145698Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the barometric pressure sensor connector (A).
  4. Remove the mounting bolt (B), and then remove the sensor from the intercooler outlet pipe.

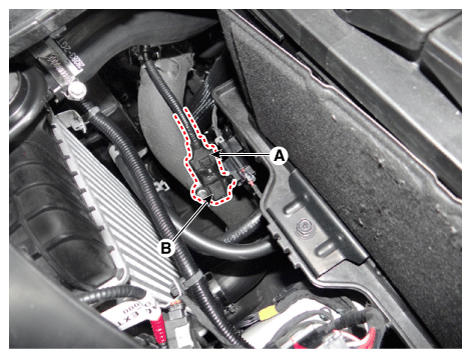

    Fig 2: Disconnecting Barometric Pressure Sensor Connector
    G12145699Courtesy of KIA MOTORS AMERICA, INC.
