Circuit Diagram

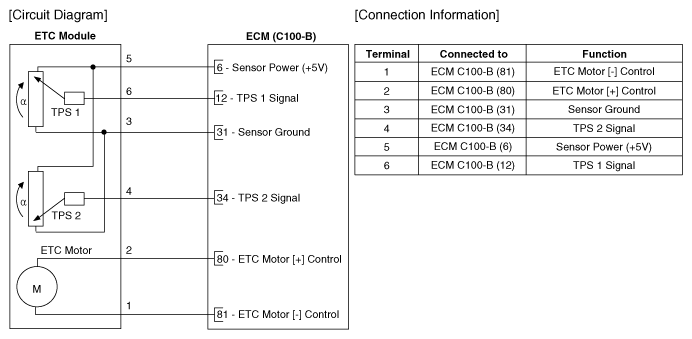

Fig 1: Electronic Throttle Control System Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
