Smart Key Code Saving

Connect the DLC cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.

Fig 1: Locating Data Link Connector
Courtesy of KIA MOTORS AMERICA, INC.
Select the vehicle model and then do "Smart key code saving".

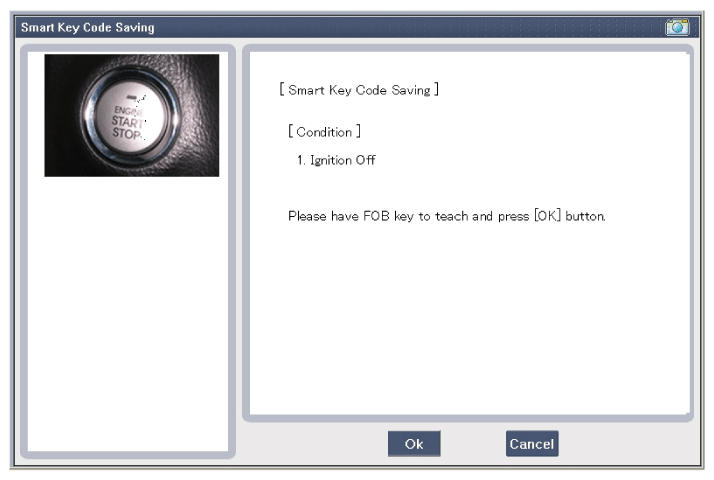

Fig 2: Screen Display - Smart Key Code Saving
Courtesy of KIA MOTORS AMERICA, INC.
After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.

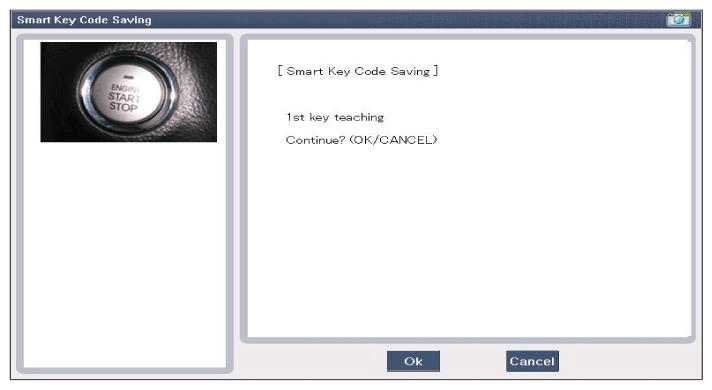

Fig 3: Screen Display - Smart Key Teaching
Courtesy of KIA MOTORS AMERICA, INC.
After pushing the SSB with the teaching key, press "OK" button.
Input the "Pin code" for first key teaching.

Fig 4: Screen Display - Input Pin Code For First Key Teaching (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Screen Display - Input Pin Code For First Key Teaching (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "First key teaching completed".

Fig 6: Screen Display - First Key Teaching Completed (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 7: Screen Display - First Key Teaching Completed (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 8: Screen Display - First Key Teaching Completed (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 9: Screen Display - First Key Teaching Completed (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

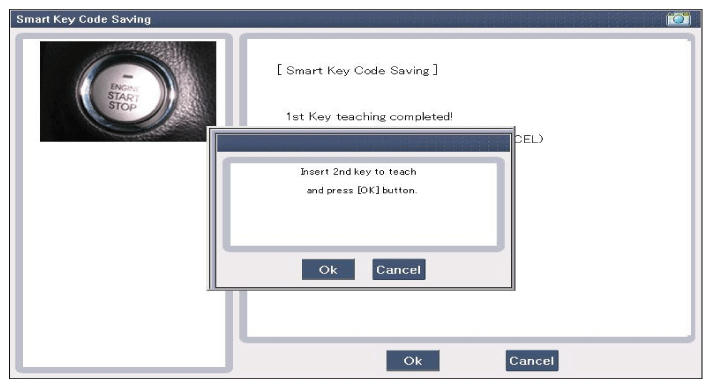

Confirm the message "Second key teaching completed".

Fig 10: Screen Display - Second Key Teaching Completed
Courtesy of KIA MOTORS AMERICA, INC.

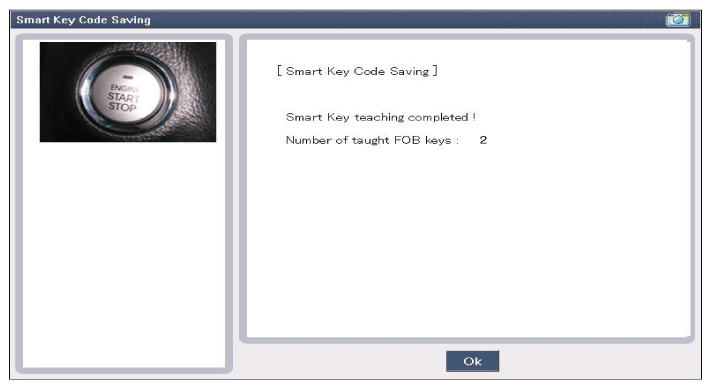

Then the screen will be shown as below when key teaching process is completed.
