Components Location

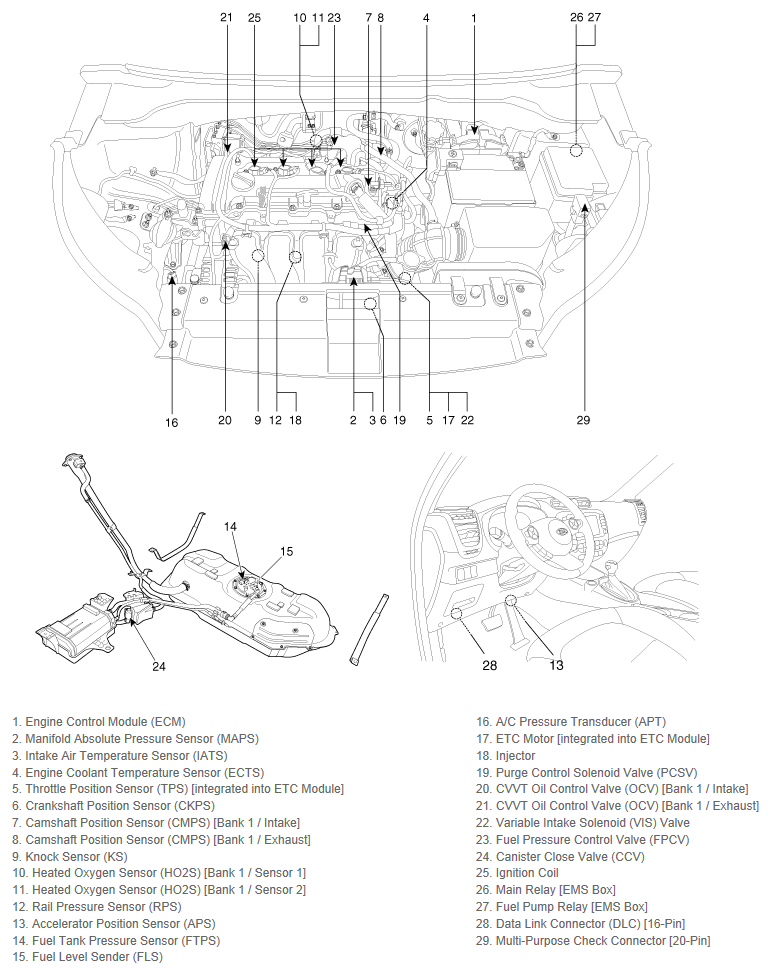

Fig 1: Engine Control System Components (1 Of 7)

G12239068

Courtesy of KIA MOTORS AMERICA, INC.

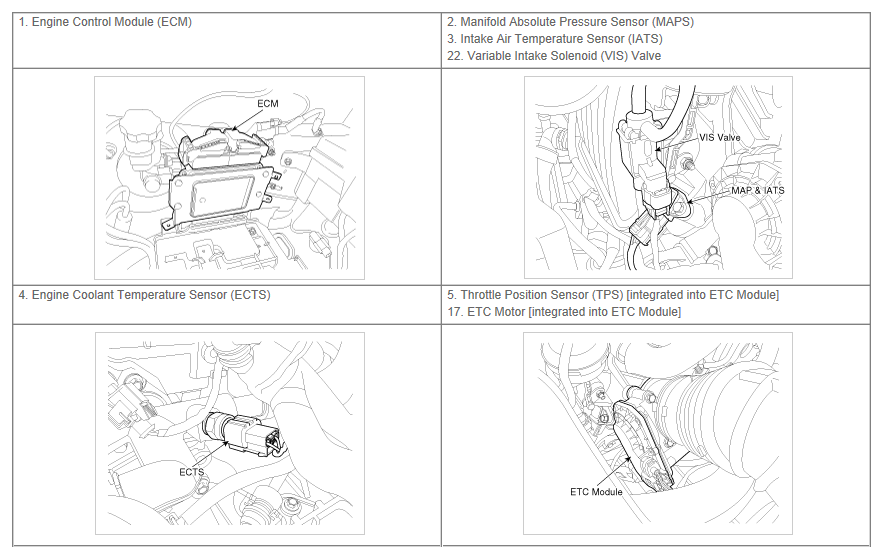

Fig 2: Engine Control System Components (2 Of 7)

G12239069

Courtesy of KIA MOTORS AMERICA, INC.

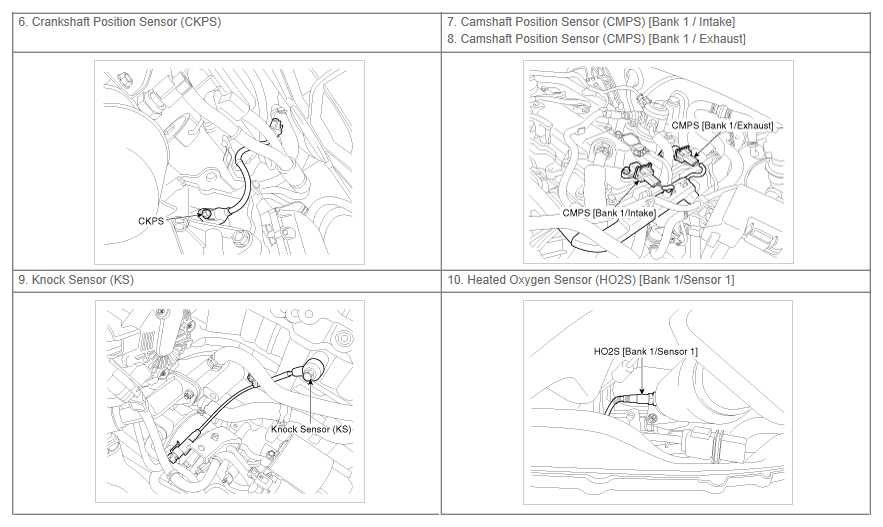

Fig 3: Engine Control System Components (3 Of 7)

G12239070

Courtesy of KIA MOTORS AMERICA, INC.

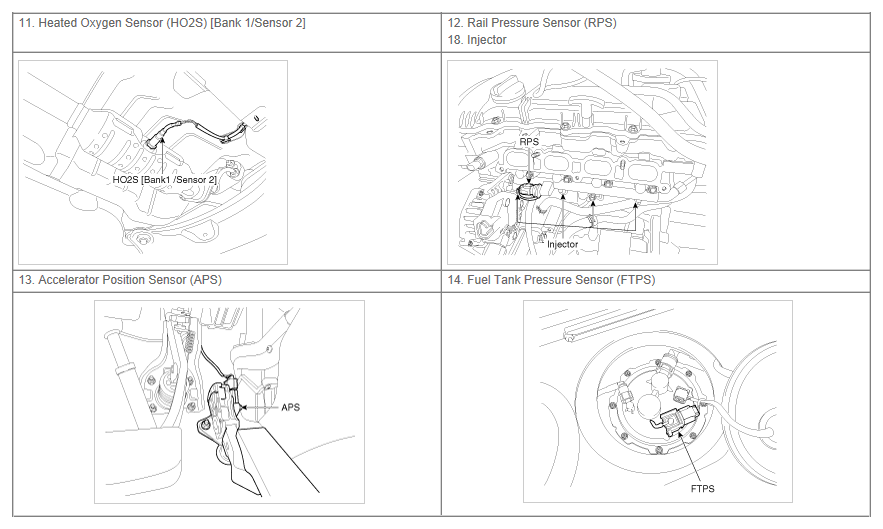

Fig 4: Engine Control System Components (4 Of 7)

G12239071

Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Engine Control System Components (5 Of 7)

G12239072

Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Engine Control System Components (6 Of 7)

G12239073

Courtesy of KIA MOTORS AMERICA, INC.

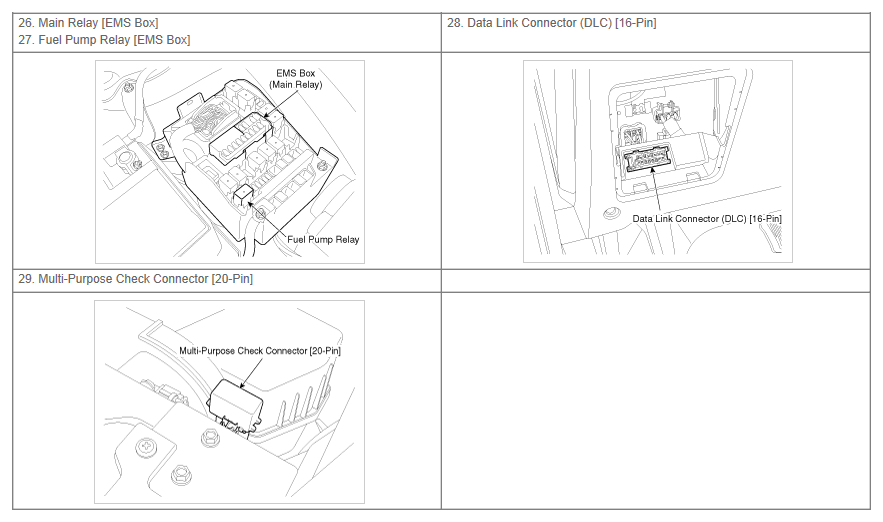

Fig 7: Engine Control System Components (7 Of 7)

G12239074

Courtesy of KIA MOTORS AMERICA, INC.
