Circuit Diagram

(M/T)

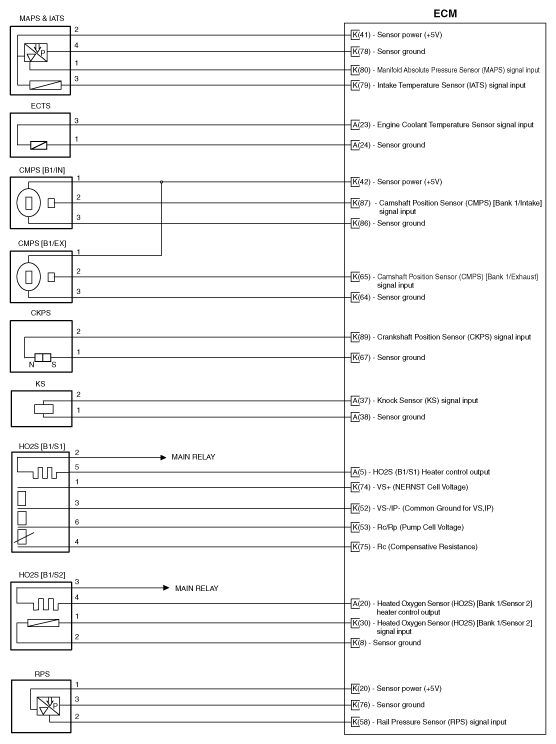

Fig 1: Engine Control Module Circuit - M/T (1 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

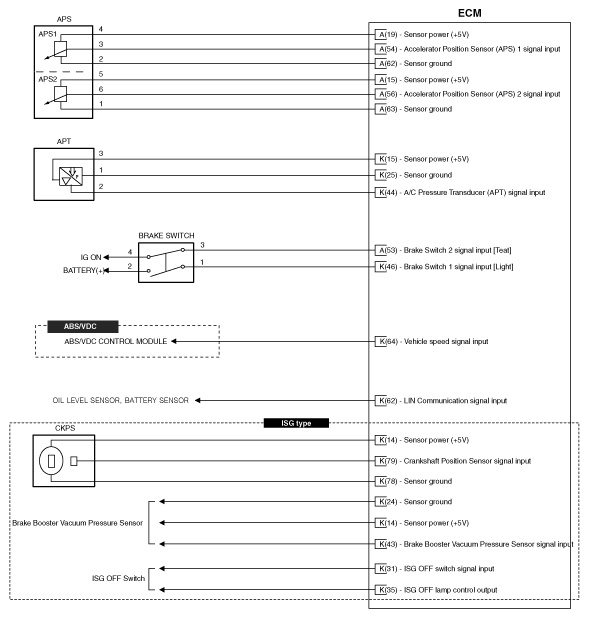

Fig 2: Engine Control Module Circuit - M/T (2 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

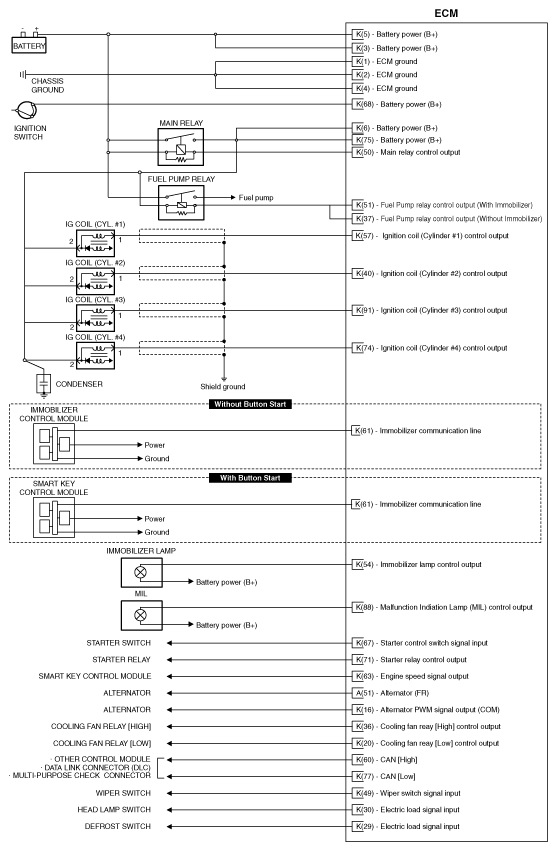

Fig 3: Engine Control Module Circuit - M/T (3 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

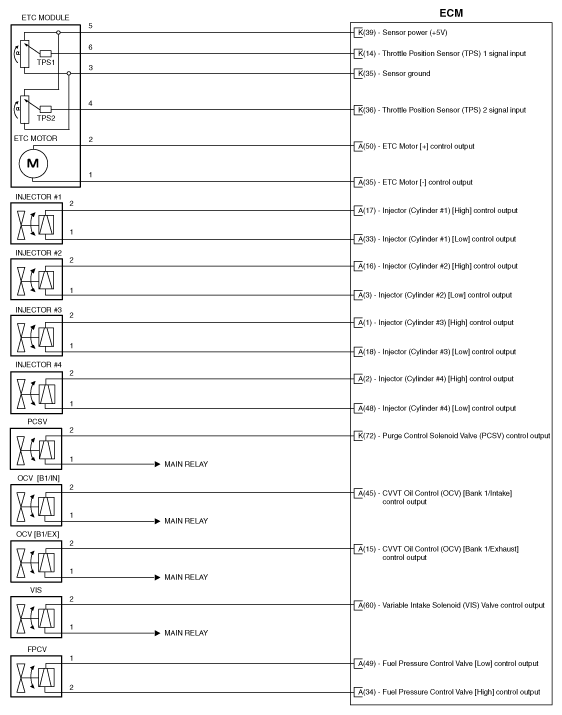

Fig 4: Engine Control Module Circuit - M/T (4 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

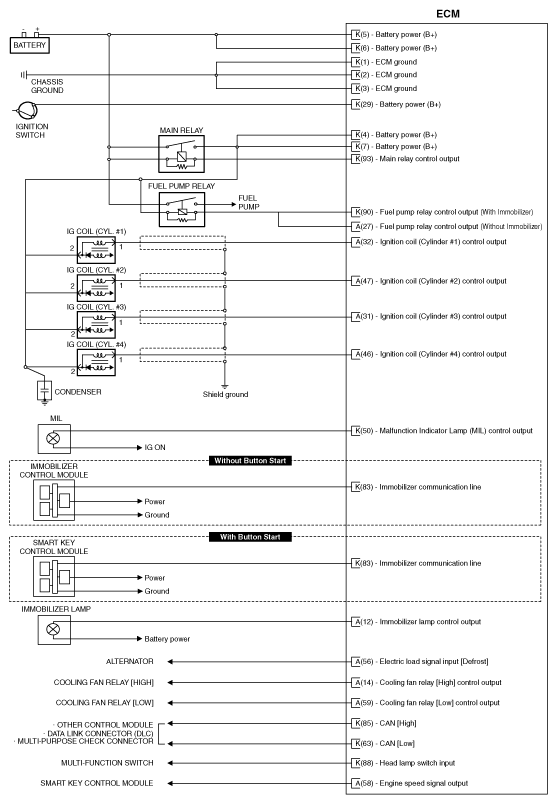

Fig 5: Engine Control Module Circuit - A/T (1 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

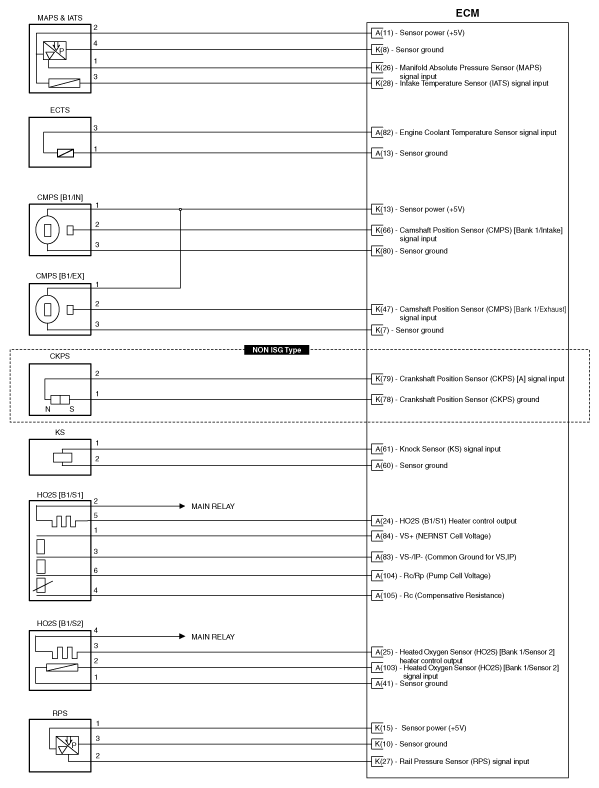

Fig 6: Engine Control Module Circuit - A/T (2 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

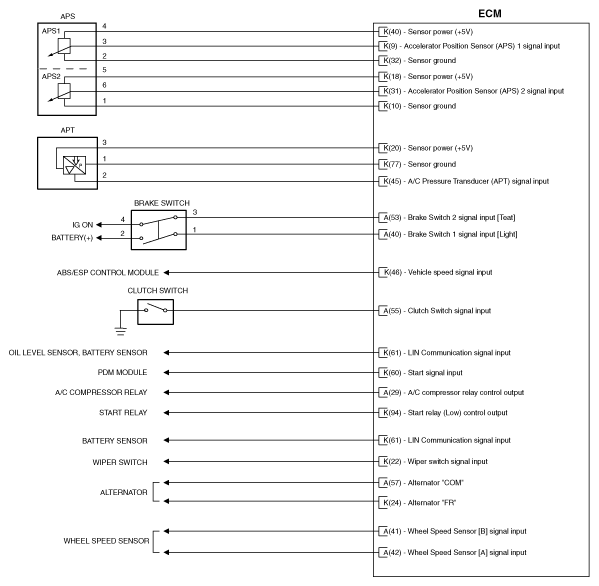

Fig 7: Engine Control Module Circuit - A/T (3 Of 4)
