Rear Power Window Switch Inspection

1. Disconnect the negative (-) battery terminal.
2. Remove the rear door trim panel.

   (Refer to "REAR DOOR TRIM ")

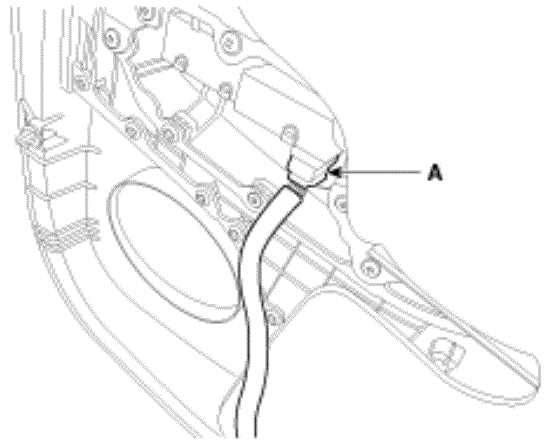

3. Disconnect the connector (A) from the switch.

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.

4. Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.

[With Seat Heater]

Courtesy of KIA MOTORS AMERICA, INC.

[Without Seat Heater]

Courtesy of KIA MOTORS AMERICA, INC.
