Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the gear knob (A) from the console upper cover after pulling it out upward.
    G12821040Courtesy of KIA MOTORS AMERICA, INC.
  3. Using a screw driver or remover, remove the console upper cover (A).
    G12821041Courtesy of KIA MOTORS AMERICA, INC.

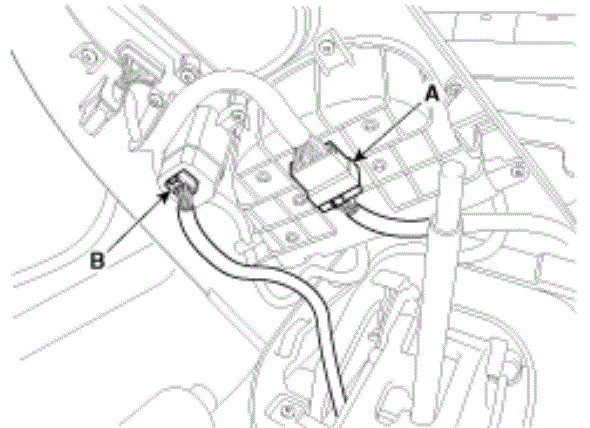

  4. Disconnect the indicator connector (A) and start/stop switch connector (B).
    G12821042Courtesy of KIA MOTORS AMERICA, INC.
  5. Disconnect the multimedia jack connector (A).
    G12821043Courtesy of KIA MOTORS AMERICA, INC.
  6. Disconnect the gear lever lamp connector (A) and wiring.
    G12821044Courtesy of KIA MOTORS AMERICA, INC.
  7. Remove the start/stop button (A) after loosening the mounting screws.
G12821045Courtesy of KIA MOTORS AMERICA, INC.
