Smart Key Code Saving

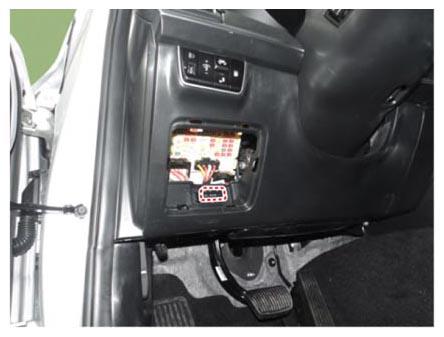

  1. Connect the DLC cable of KDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on KDS.
    G12798820Courtesy of KIA MOTORS AMERICA, INC.

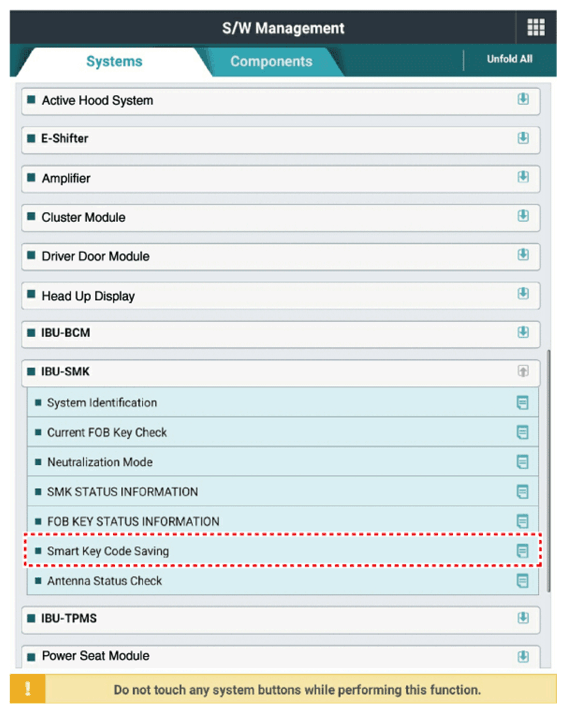

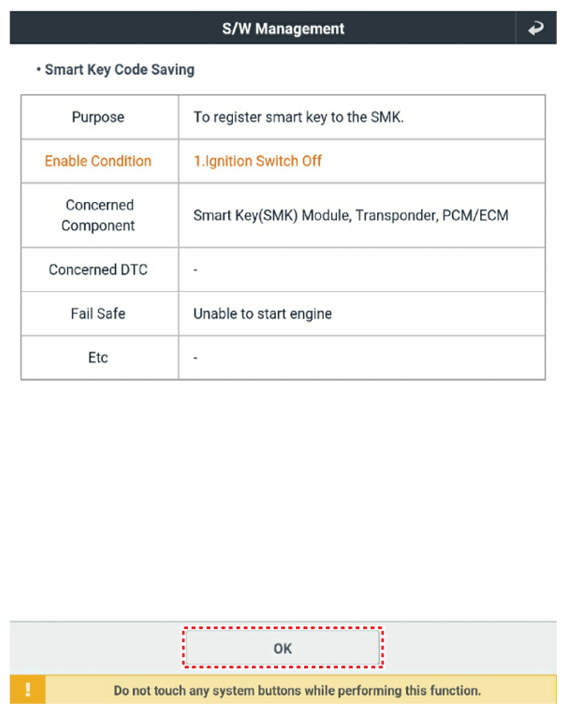

  2. Select the vehicle model and then do "Smart key code saving".
    G12798821Courtesy of KIA MOTORS AMERICA, INC.
    G12798822Courtesy of KIA MOTORS AMERICA, INC.

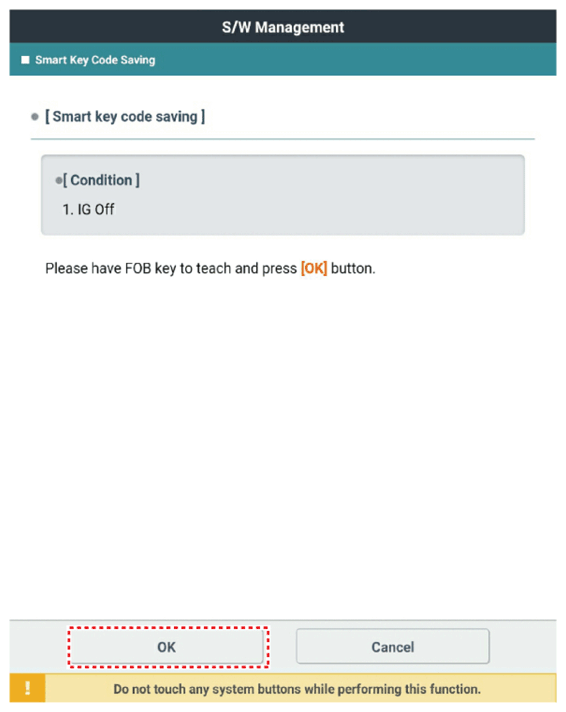

  3. After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be as shown in the illustration below.
    G12798823Courtesy of KIA MOTORS AMERICA, INC.
  4. After having the teaching smart key, push "ENTER" key.

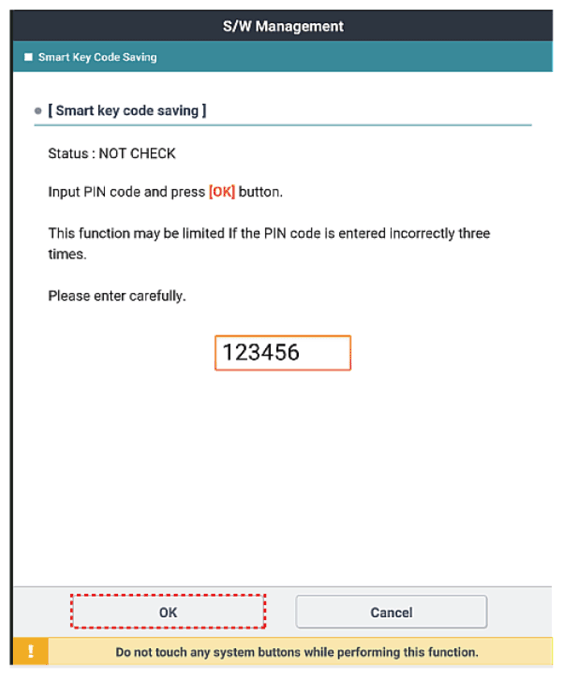

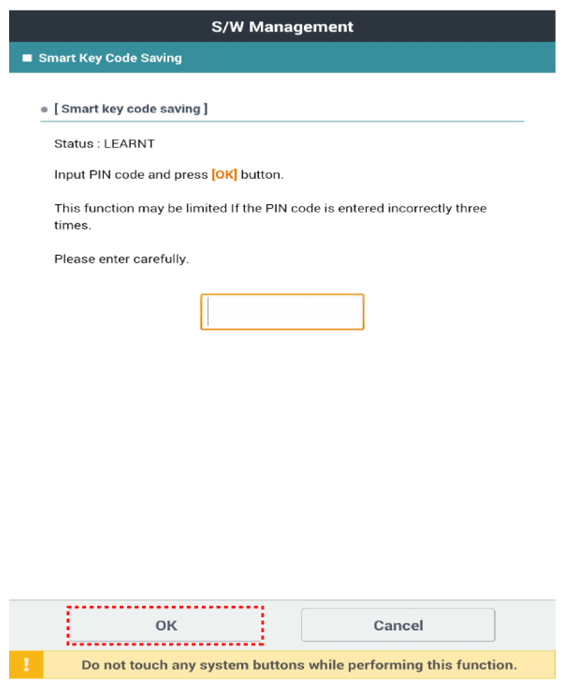

  5. Input the "Pin code" for first key teaching.
    G12798824Courtesy of KIA MOTORS AMERICA, INC.
    G12798825Courtesy of KIA MOTORS AMERICA, INC.
    G12798826Courtesy of KIA MOTORS AMERICA, INC.

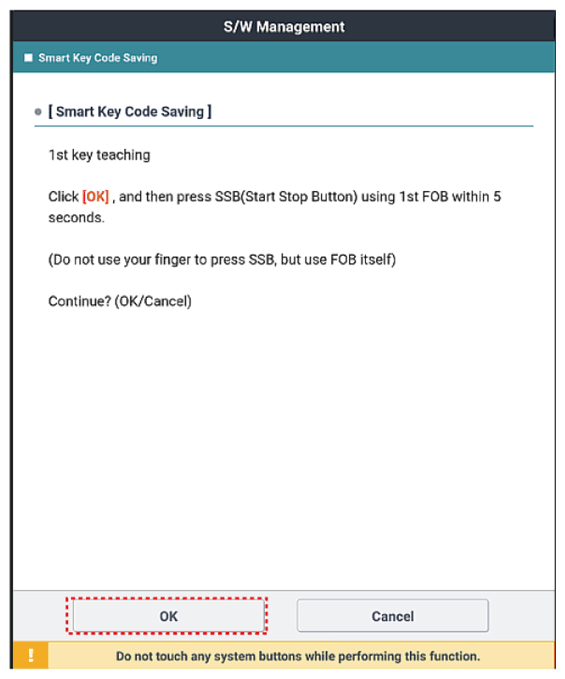

  6. Confirm the message "First key teaching completed".
    G12798827Courtesy of KIA MOTORS AMERICA, INC.

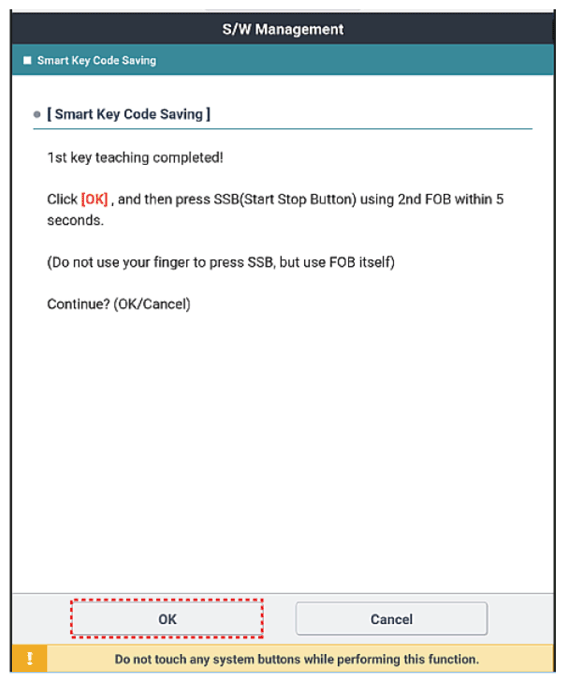

  7. Press the SSB with smart key within 5 sec after pressing "OK".
    G12798828Courtesy of KIA MOTORS AMERICA, INC.

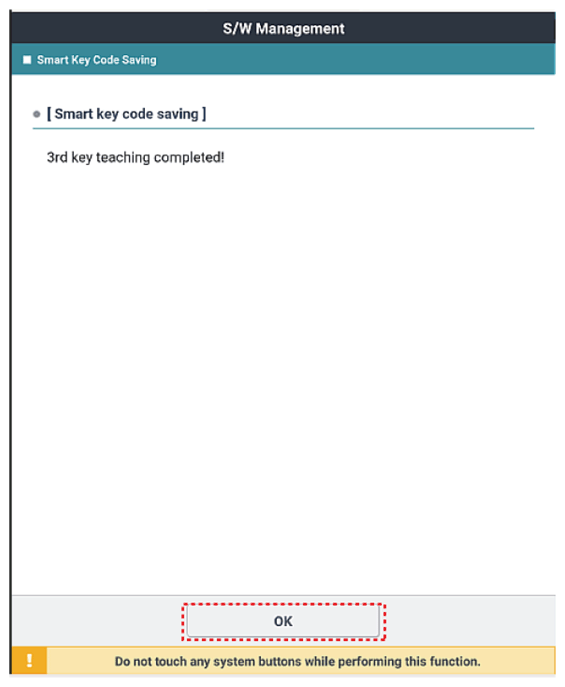

  8. Confirm the message "Second key teaching completed".
    G12798829Courtesy of KIA MOTORS AMERICA, INC.
    G12798830Courtesy of KIA MOTORS AMERICA, INC.
  9. Then the screen will be as shown in the illustration below when key teaching process is completed.
    G12798831Courtesy of KIA MOTORS AMERICA, INC.
