Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

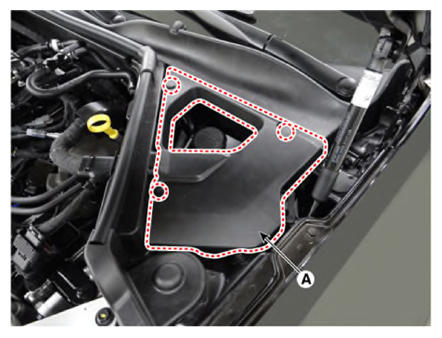

  2. Remove the engine side cover (A).
    G12792397Courtesy of KIA MOTORS AMERICA, INC.

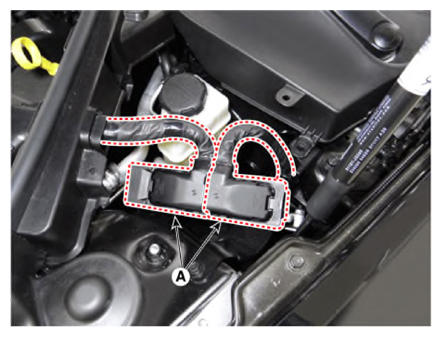

  3. Disconnect the ECM Connector (A).
    G12792398Courtesy of KIA MOTORS AMERICA, INC.

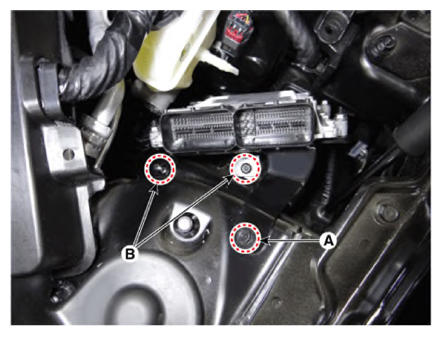

  4. Remove the ECM bracket assembly after loosening the mounting bolt (A) and nuts (B).

    ECM mounting bolt/nut:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G12792399Courtesy of KIA MOTORS AMERICA, INC.

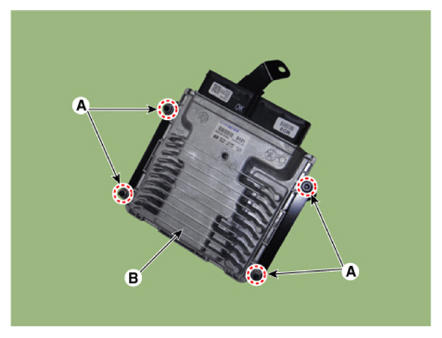

  5. Remove the ECM(B) after loosening the mounting nuts (A).

    ECM bracket mounting bolt/nut:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

G12792400Courtesy of KIA MOTORS AMERICA, INC.

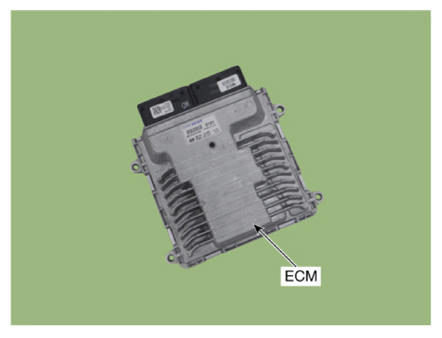

G12792401Courtesy of KIA MOTORS AMERICA, INC.
