Special Service Tools
ENGINE CONTROL/FUEL SYSTEM SPECIAL SERVICE TOOLS
| Tool Name/Number | Illustration | Description |
|---|---|---|
| Fuel Pressure Gauge 09353-24100 | Used for measuring the pressure in fuel line | |
| Fuel Pressure Gauge Adaptor 0K353-D4100 | Used for connecting between high pressure fuel pump and low pressure fuel feed tube to measure the pressure in fuel line SST 09353-02100 also can be used |
|
| Heated Oxygen Sensor Socket Wrench 09392-1Y100 | Removal and installation of the heated oxygen sensor SST No. 09392-2H100 model also can be used for removing the Heated Oxygen Sensor. |
|
| Torque Wrench Socket (19mm) 09314-3Q100 | Used for removing/installing high pressure fuel pipe SST No. 09314-27130 also can be used. |
|

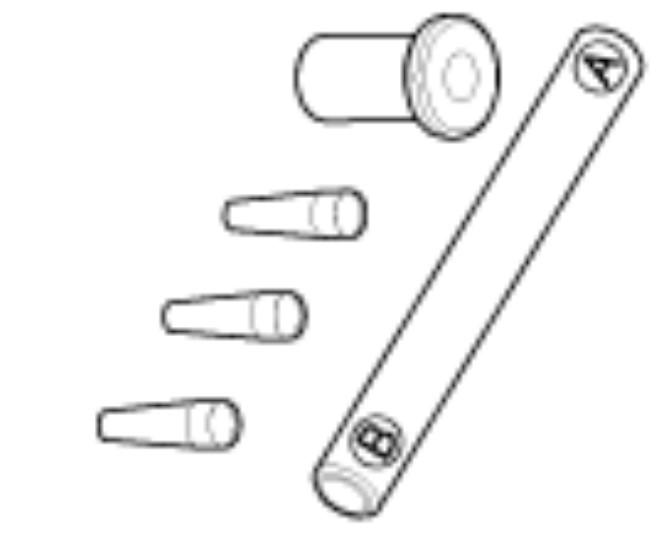

| Injector Combustion Seal Guide & Sizing tool 09353-2B000 | Used for installing injector combustion seal on injector | |
| Sub Fuel Sender Plate Cover remover 09310-B9100 | Used for removing/installing fuel pump. | |
| Low Pressure Fuel Pump Plate Cover remover 09310-B8100 | Used for removing/installing fuel pump. |
