Toe Adjustment

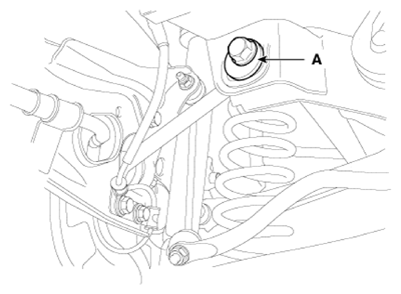

1. Loosen the nut holding the assist arm cam bolt (A).
2. Adjust rear toe by turning the rear assist arm cam bolt (A) clockwise or counter clockwise. Toe adjustment should be made by turning the right and left cam bolts by the same amount.

   Toe

   Total: 0.4°±0.2°

   Individual: 0.2°±0.1°

   Courtesy of KIA MOTORS AMERICA, INC.

3. When completing the toe adjustment, tighten the nut to specified torque.

   Tightening torque:

137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb.ft)
