[Bank 2/Intake]

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.

    Camshaft Position Sensor mounting bolt  :

    7.8 - 8.8 N.m (0.8 - 0.9 kgf.m, 5.8 - 6.5 lb.ft)

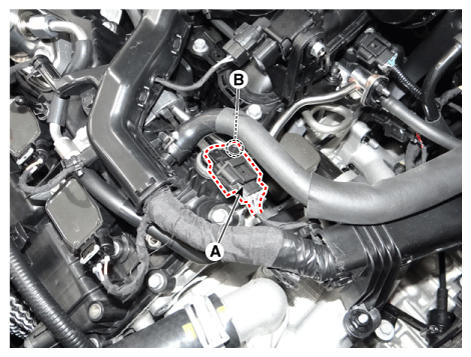

    Fig 1: Locating Camshaft Position Sensor Mounting Bolt
    G12290711Courtesy of KIA MOTORS AMERICA, INC.
