Repair Procedures: Removal

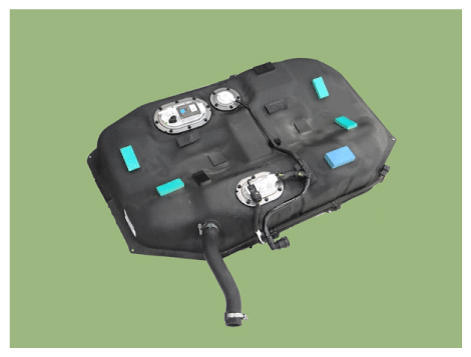

Fig 1: Identifying Fuel Tank

Courtesy of KIA MOTORS AMERICA, INC.

Release the residual pressure in fuel line.
(Refer to the Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
Remove the rear seat cushion.
(Refer to Body - "REAR SEAT ASSEMBLY ")

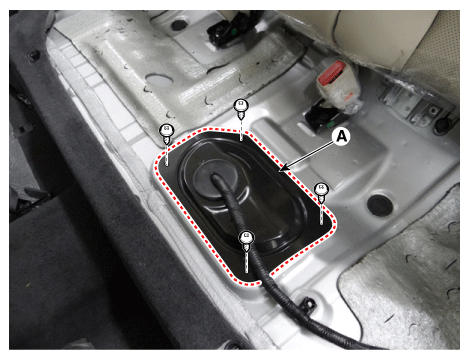

Remove the fuel pump service cover (A) after loosening the mounting screws.

Fig 2: Locating Fuel Pump Service Cover With Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.

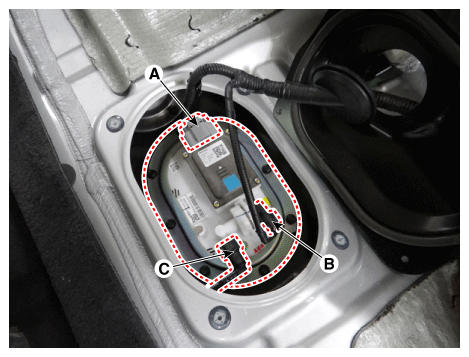

Disconnect the fuel pump control module connector (A), fuel pressure sensor connector (B) and fuel feed tube quick-connector (C).

Fig 3: Locating Fuel Pump Control Module Connector & Fuel Feed Tube Quick-Connector
Courtesy of KIA MOTORS AMERICA, INC.
Lift the vehicle.
Remove the center muffler assembly.
(Refer to Engine Mechanical System - "MUFFLER ")

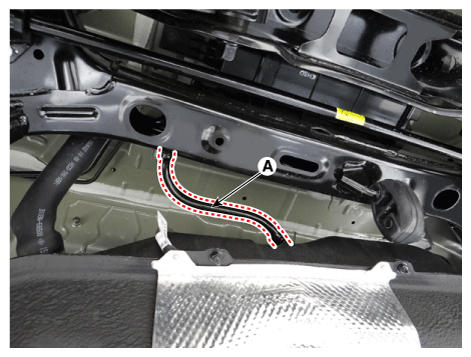

Disconnect the fuel filler hose (A).

Fig 4: Locating Fuel Filler Hose
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the vapor tube quick-connector (A) from the canister.

Fig 5: Locating Vapor Tube Quick-Connector From Canister
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the FTPS extension connector (A).

Fig 6: Locating FTPS Extension Connector
Courtesy of KIA MOTORS AMERICA, INC.

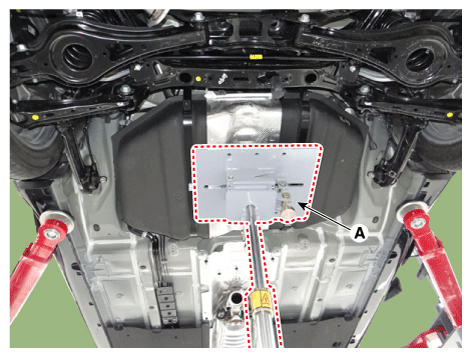

Support the fuel tank on a jack (A).

Fig 7: Supporting Fuel Tank On Jack
Courtesy of KIA MOTORS AMERICA, INC.

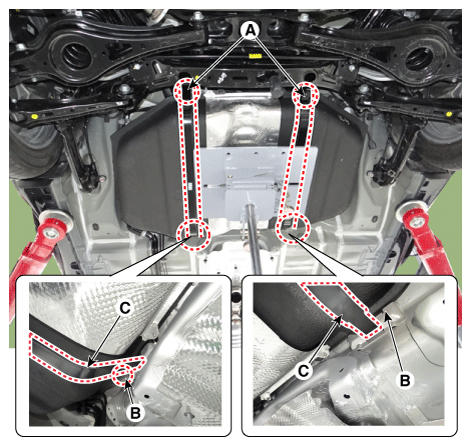

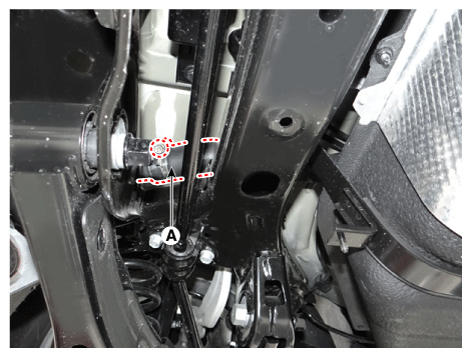

After loosening the rear side fuel tank band mounting nut (A), remove the fuel tank band (C) from the gap (B) between front side fuel tank and body.
Fuel tank band mounting nut :

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb.ft)

Fig 8: Locating Rear Side Fuel Tank Band With Mounting Nut
Courtesy of KIA MOTORS AMERICA, INC.

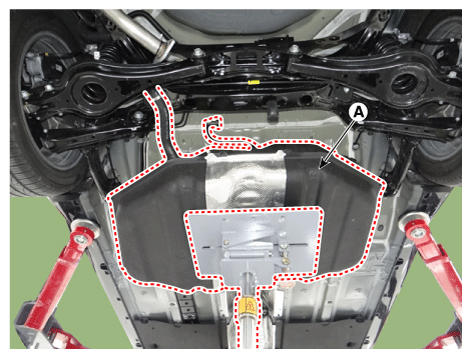

Remove the fuel tank (A).

Fig 9: Remove Fuel Tank
