Repair Procedures: Inspection

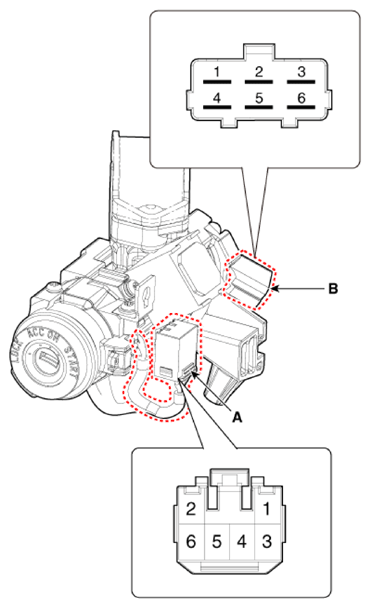

  1. Disconnect the ignition switch connector (A) and key warning switch connector (B) from under the steering column.
    G12832426Courtesy of KIA MOTORS AMERICA, INC.

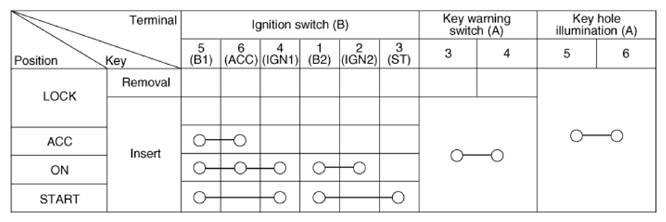

  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.
    G12832427Courtesy of KIA MOTORS AMERICA, INC.
