Removal and Installation

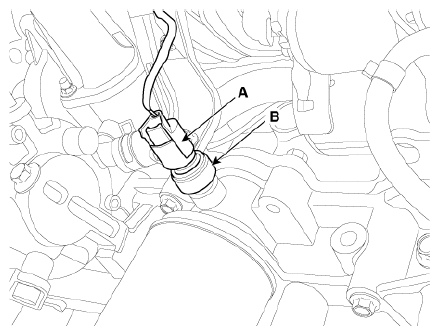

Disconnect the oil pressure switch connector (A) and then remove the oil pressure switch (B).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.

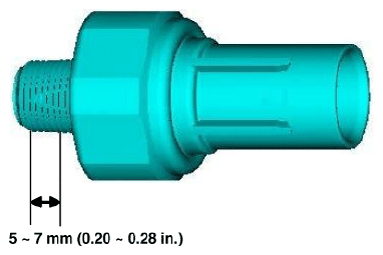

NOTE: When installing the oil pressure switch, apply seal lock to the thread.

Seal lock: THREEBOND 2403

Thickness: 0.2 - 0.4 mm (0.008 - 0.016 in.)

Courtesy of KIA MOTORS AMERICA, INC.
