Components And Components Location: Components

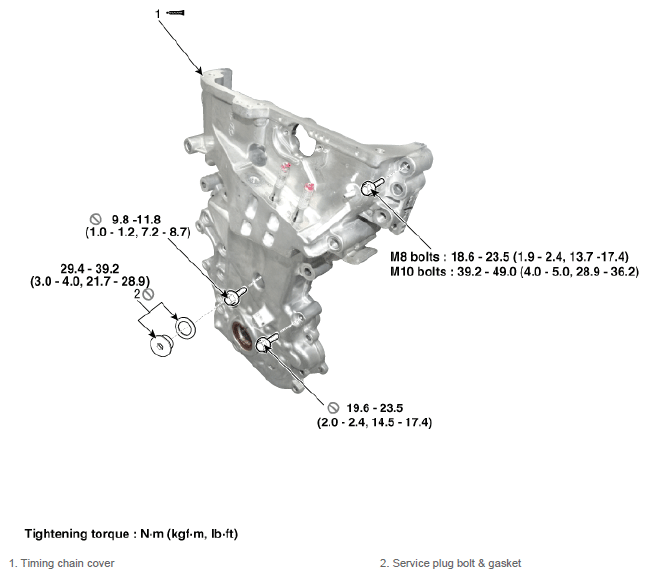

Fig 1: Timing Chain Cover Components Location With Torque Specification
G12826457Courtesy of KIA MOTORS AMERICA, INC.
