Repair Procedures: Installation

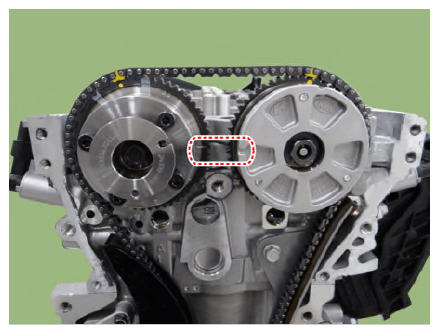

The TDC marks of the intake and exhaust CVVT sprockets are slightly turned from the TDC position as shown below in the illustration when the timing chain is removed.

Courtesy of KIA MOTORS AMERICA, INC.

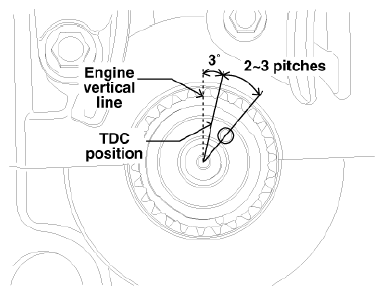

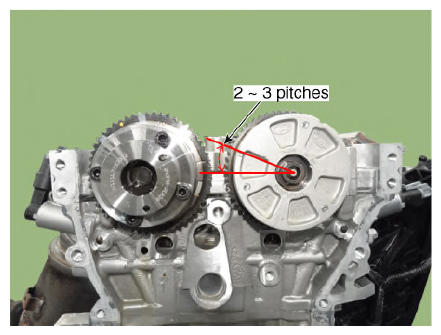

Turn the crankshaft clockwise (about 2-3 pitches) from the TDC position (the dowel pin (A) of crankshaft is about 3° with the engine vertical line) as rotation of the intake CVVT sprocket from the TDC position.

Courtesy of KIA MOTORS AMERICA, INC.

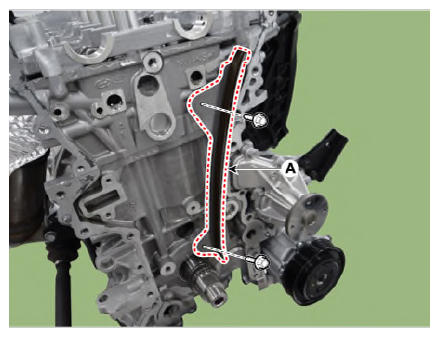

Install the timing chain guide (A).
Tightening torque:

18.6 - 22.6 N.m (1.9 - 2.3 kgf.m, 13.7 - 16.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

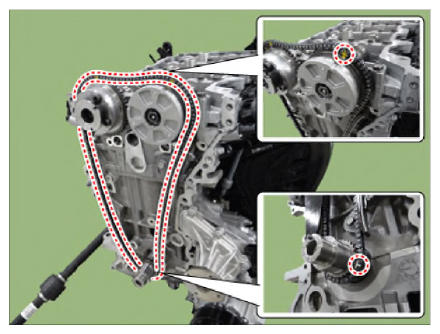

Install the timing chain.

Crankshaft sprocket → Timing chain guide → Intake CVVT sprocket → Exhaust CVVT sprocket

Install the timing chain with no slack between the crankshaft sprocket and the intake CVVT sprocket.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The timing marks of each sprocket should be matched with timing marks (color link) of timing chain when installing the timing chain.

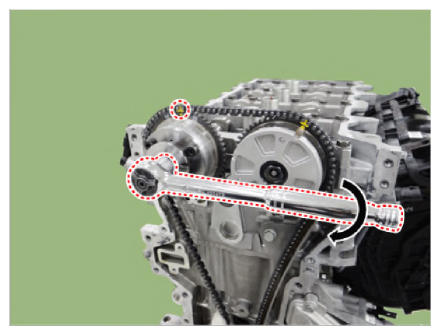

Install the timing chain on the exhaust CVVT sprocket with no slack while turning the CVVT assembly clockwise.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

The timing mark of the exhaust CVVT sprocket should be matched with timing mark (color link) of timing chain when installing the timing chain.
Press down the timing chain links on the exhaust CVVT sprocket to prevent the sprocket from spinning.

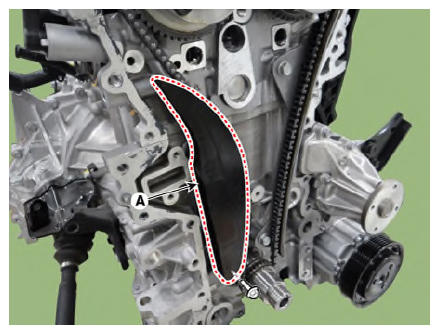

Install the timing chain tensioner arm (A).
Tightening torque:

18.6 - 22.6 N.m (1.9 - 2.3 kgf.m, 13.7 - 16.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

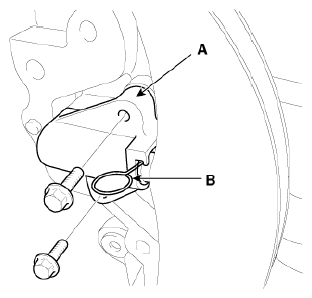

Install the timing chain auto tensioner (A) and remove the stopper pin (B).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: When reinstall the tensioner, always use new tensioner.
After rotating crankshaft 2 revolutions in regular direction (clockwise viewed from front), confirm that the TDC marks on the intake and exhaust CVVT sprockets are aligned with the top surface of cylinder head.

Courtesy of KIA MOTORS AMERICA, INC.
Install the other parts reverse order of removal.
NOTE:
- Refill engine with engine oil.
- Clean battery posts and cable terminals and assemble.
- Inspect for fuel leakage.
- After assembling the fuel line, turn on the ignition switch (do not operate the starter) so that the fuel pump runs for approximately two seconds and fuel line pressurizes.
- Repeat this operation two or three times, then check for fuel leakage at any point in the fuel line.2
