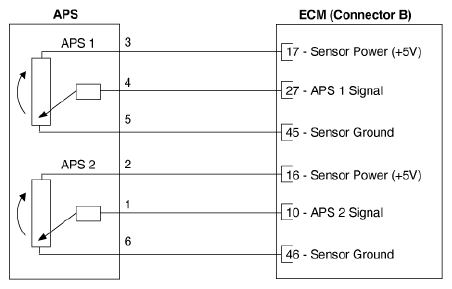

Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.

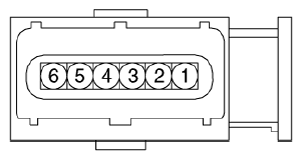

Harness Connector
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
