Circuit Diagram

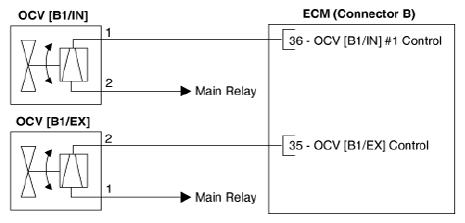

G12830282Courtesy of KIA MOTORS AMERICA, INC.

Harness Connector

OCV [Bank 1/Intake]

G12830283Courtesy of KIA MOTORS AMERICA, INC.

OCV [Bank 1/Exhaust]

G12830284Courtesy of KIA MOTORS AMERICA, INC.
