Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the canister assembly.

    (Refer to Emission Control System - " CANISTER  ")

  3. Remove the installation bolt (A), and then remove the air filter (B).

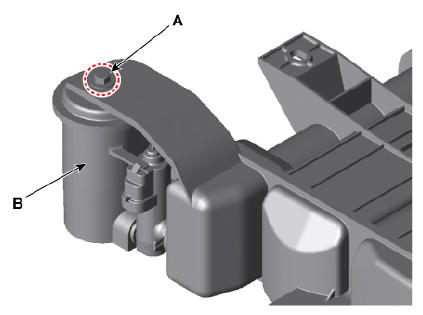

    G12830307Courtesy of KIA MOTORS AMERICA, INC.
  4. Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter after rotating it in the direction of the arrow in the illustration below.

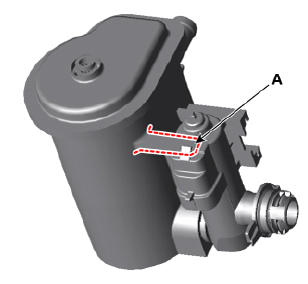

    G12830308Courtesy of KIA MOTORS AMERICA, INC.

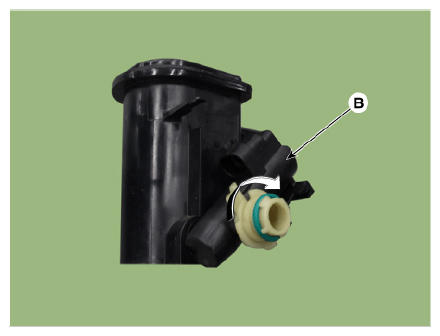

    G12830309Courtesy of KIA MOTORS AMERICA, INC.
  5. Install a new fuel tank air filter in accordance with the reverse order.
