Components Location

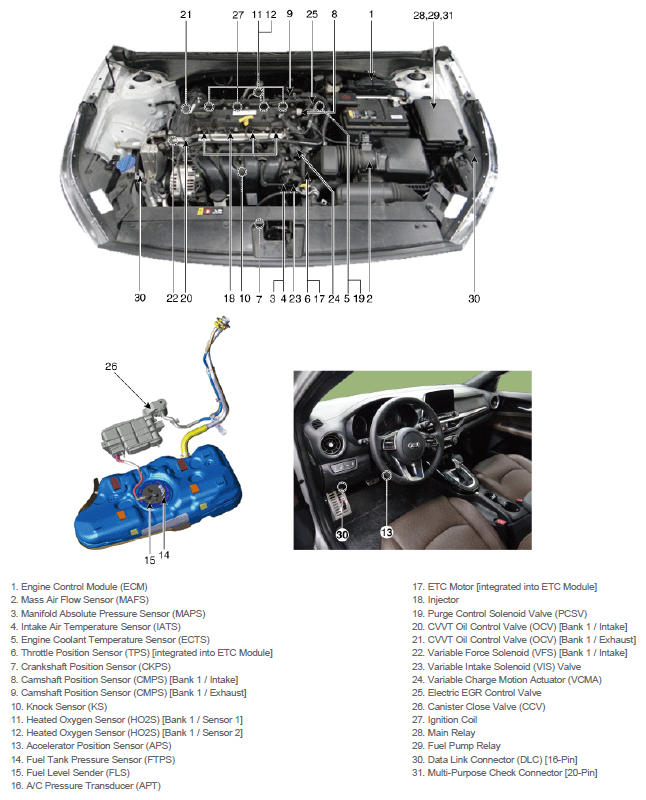

G12830197Courtesy of KIA MOTORS AMERICA, INC.

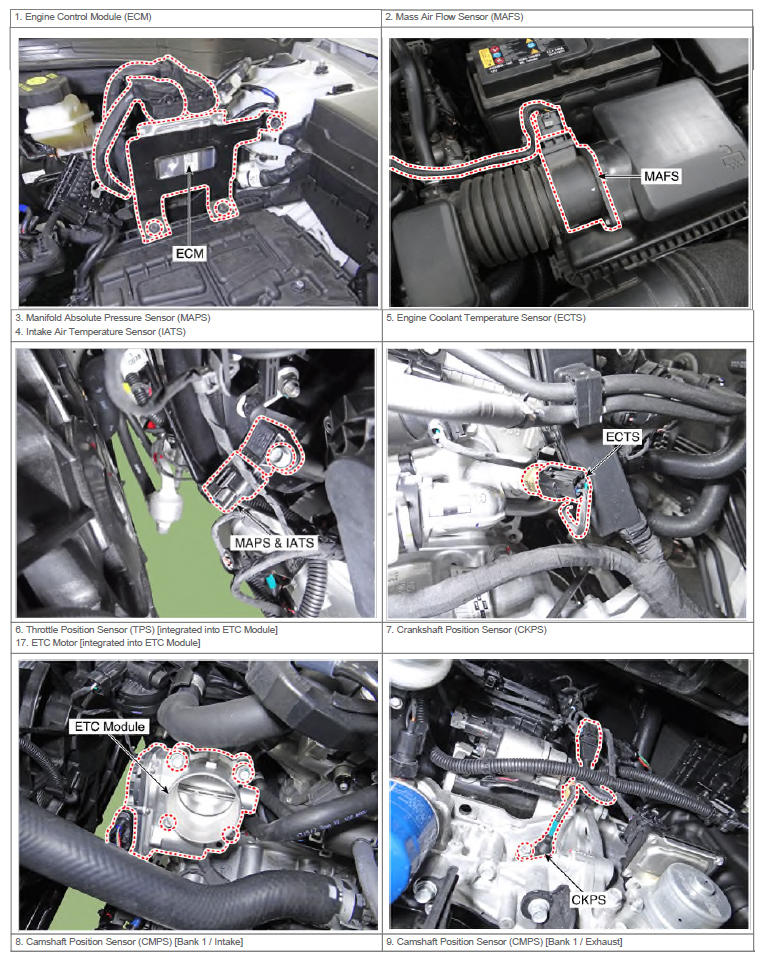

G12830198Courtesy of KIA MOTORS AMERICA, INC.

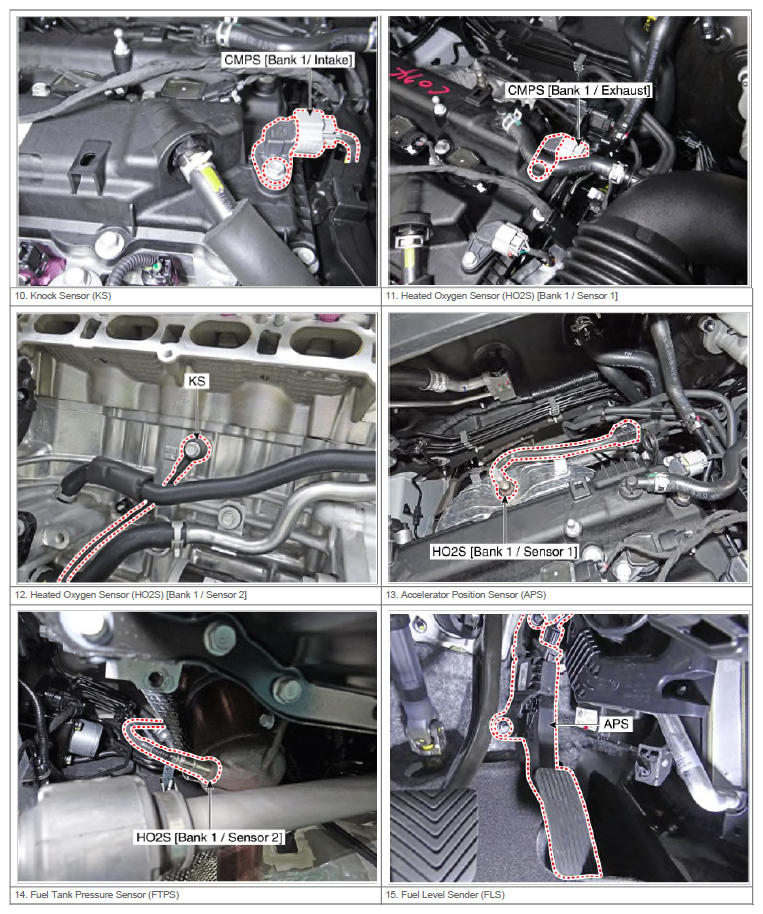

G12830199Courtesy of KIA MOTORS AMERICA, INC.

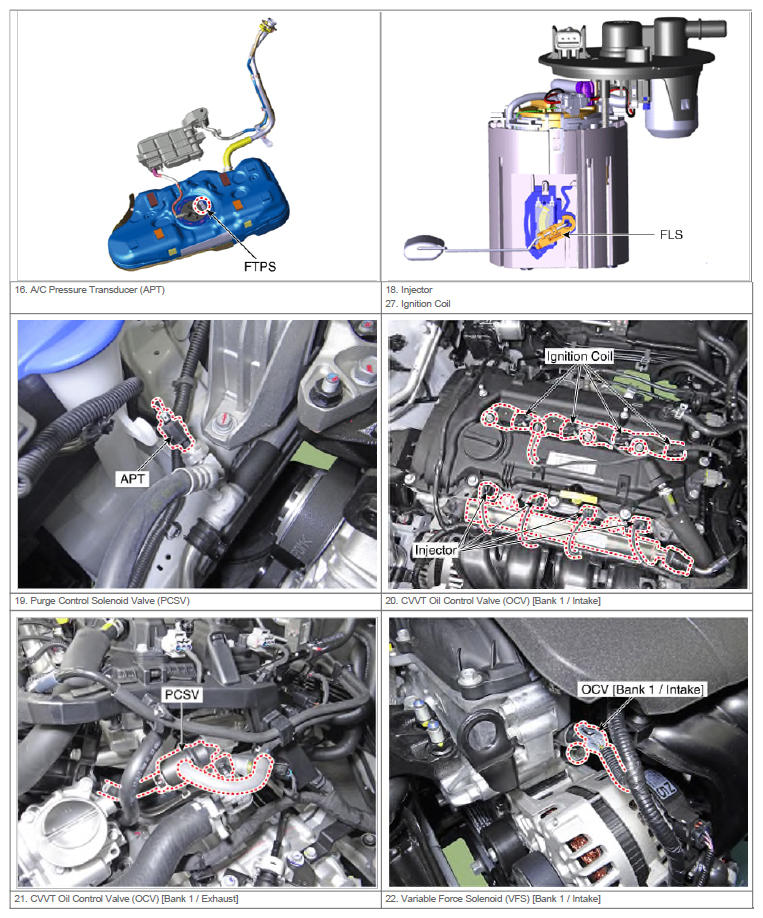

G12830200Courtesy of KIA MOTORS AMERICA, INC.

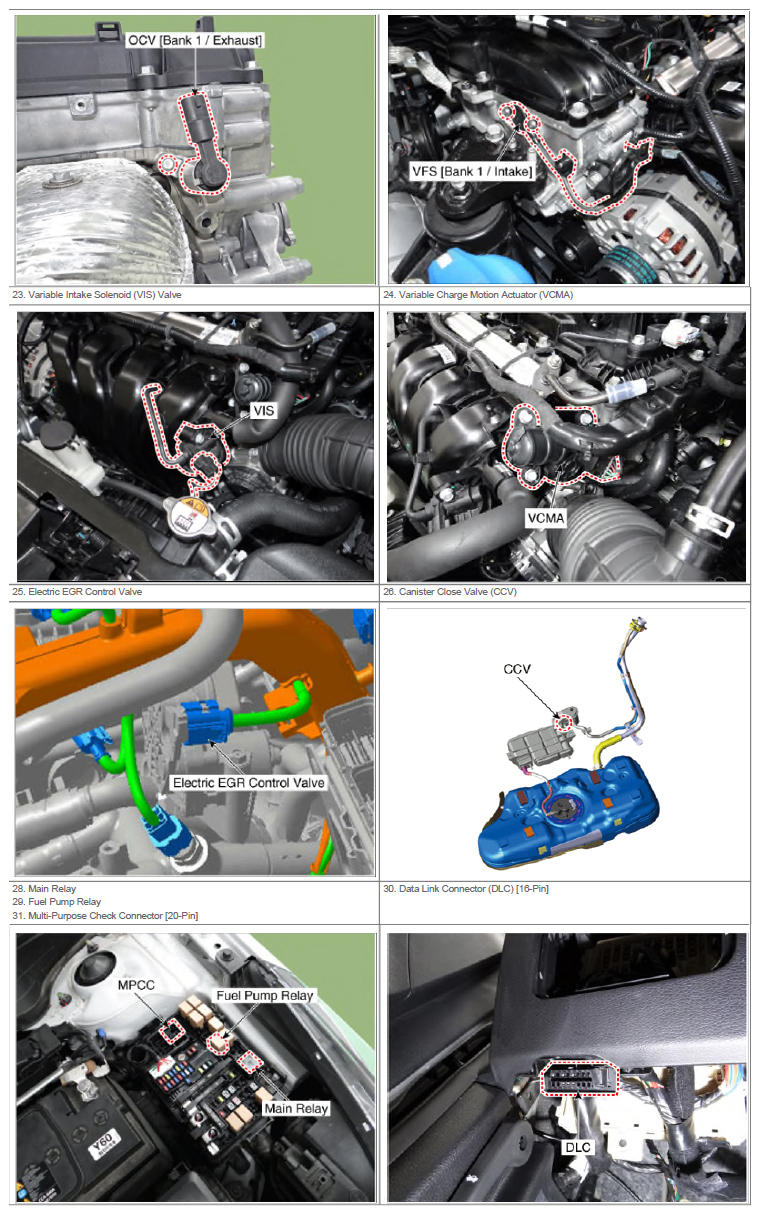

G12830201Courtesy of KIA MOTORS AMERICA, INC.
