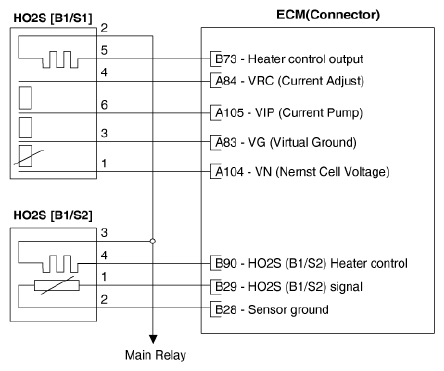

Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Harness Connector
HO2S [Bank 1/Sensor 1]
Courtesy of KIA MOTORS AMERICA, INC.
HO2S [Bank 1/Sensor 2]
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
