Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
Disconnect the PCV hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

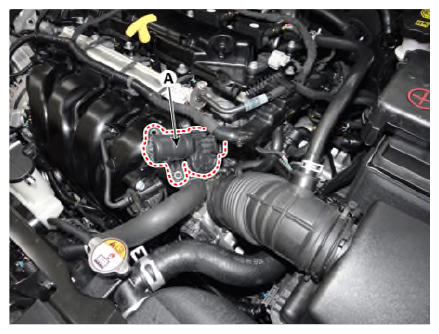

Disconnect the VCMA connector (A).
Remove the VCMA mounting bolts (B).
Variable charge motion actuator mounting bolt:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the VCMA (A).

Courtesy of KIA MOTORS AMERICA, INC.
