Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

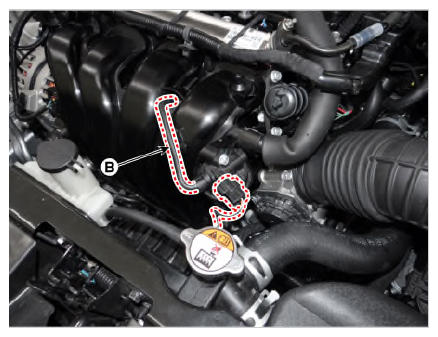

Disconnect the variable intake solenoid valve connector (A) and Vacuum hose (B).

Courtesy of KIA MOTORS AMERICA, INC.

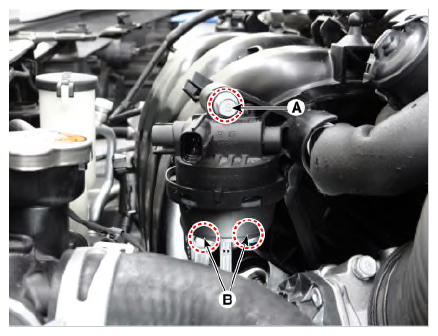

Remove the VIS valve mounting bolts (A).
Variable intake solenoid valve bracket mounting bolt:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

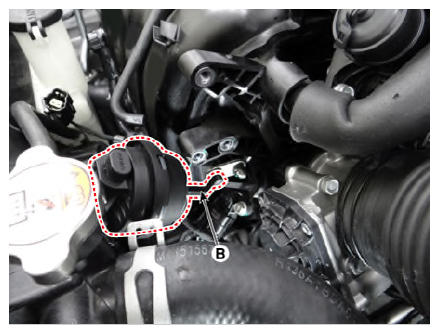

Remove the VIS valve (A) after loosening the rod (B).

Courtesy of KIA MOTORS AMERICA, INC.
