Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - " RELEASE RESIDUAL PRESSURE IN FUEL LINE  ".)

  2. Turn the ignition switch OFF, and then remove battery (-) terminal.

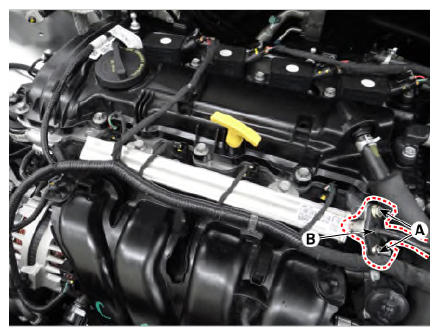

  3. Remove the installation nut (A), and then disconnect the fuel feed tube (B).

    Delivery pipe installation nut (↔ Fuel feed tube):

    3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft)

    G12830354Courtesy of KIA MOTORS AMERICA, INC.

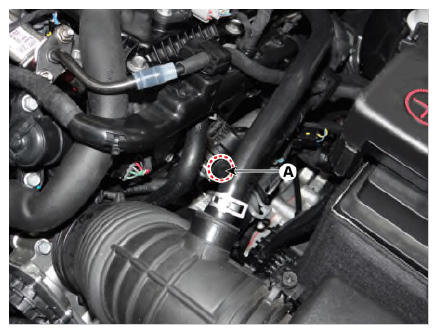

  4. Disconnect the vapor hose (A) which is connected from the PCSV.
    G12830355Courtesy of KIA MOTORS AMERICA, INC.
  5. Lift the vehicle.
  6. Remove the fuel tank.

    (Refer to Fuel Delivery System - "Fuel Tank")

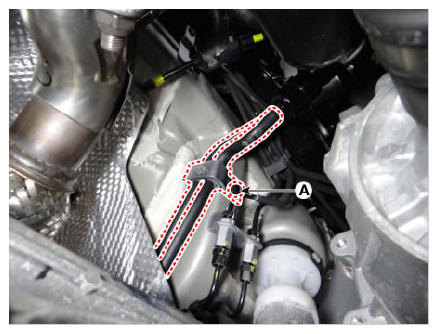

  7. Remove the fuel line fixing clip mounting bolt (A).
    G12830356Courtesy of KIA MOTORS AMERICA, INC.

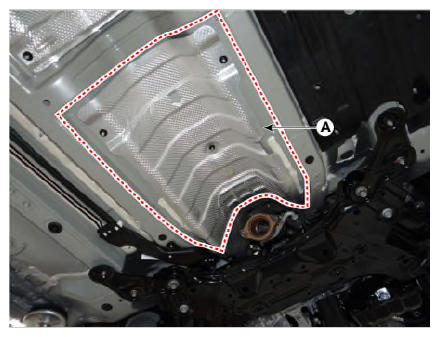

  8. Remove the heat protector (A) after loosening the mounting nuts.
    G12830357Courtesy of KIA MOTORS AMERICA, INC.

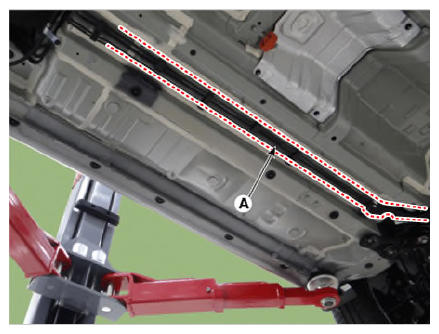

  9. Remove the fuel line (A).
    G12830358Courtesy of KIA MOTORS AMERICA, INC.
