Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - " RELEASE RESIDUAL PRESSURE IN FUEL LINE  ").

  2. Remove the rear seat.

    (Refer to Body - " REAR SEAT ASSEMBLY  ")

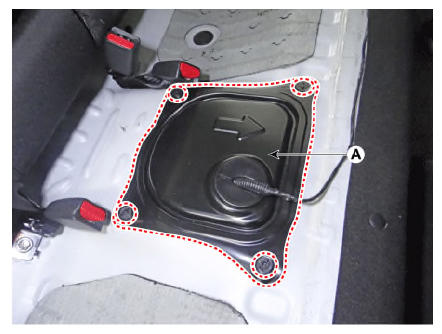

  3. Remove the fuel pump service cover (A).
    G12830326Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the fuel pump connector (A) and the fuel tank pressure sensor connector (B).
  5. Disconnect the fuel feed tube quick connector (C) and the vapor tube quick-connector (D).
  6. Remove the locking ring (E) by using the special service tool [No.: 09310-F3100].
    G12830327Courtesy of KIA MOTORS AMERICA, INC.
  7. Remove the fuel pump from the fuel tank.
G12830328Courtesy of KIA MOTORS AMERICA, INC.
