Repair Procedures: Disassembly

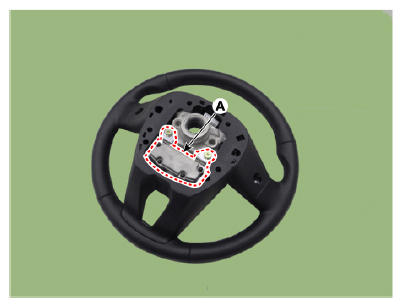

  1. Loosen the screws and then remove the dynamic damper (A).
    G12831508Courtesy of KIA MOTORS AMERICA, INC.

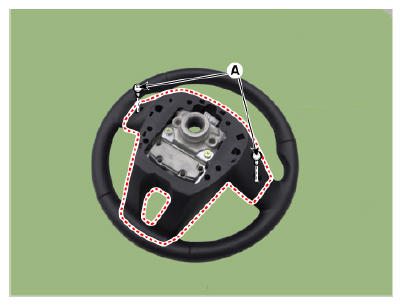

  2. Loosen the screws (A) from the lower cover.
    G12831509Courtesy of KIA MOTORS AMERICA, INC.
  3. Loosen the screws (A) and then disconnect the remote control switch (B).
  4. Loosen the screws (C) from the bezel.
    G12831510Courtesy of KIA MOTORS AMERICA, INC.

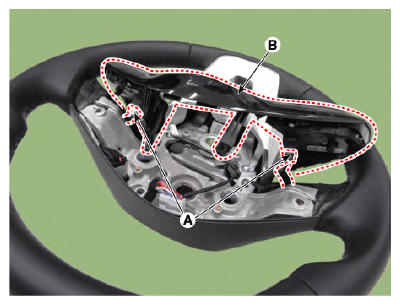

  5. Disconnect the connectors (A) and then remove the remote control switch (B).
    G12831511Courtesy of KIA MOTORS AMERICA, INC.

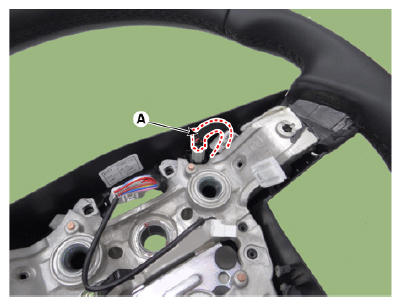

  6. Disconnect the heated steering wheel connector (A).
    G12831512Courtesy of KIA MOTORS AMERICA, INC.

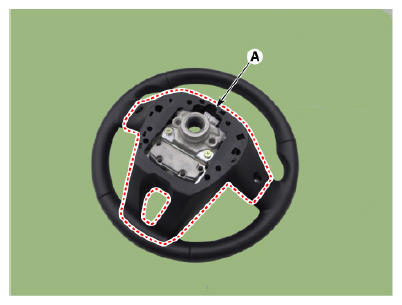

  7. Remove the lower cover (A).
    G12831513Courtesy of KIA MOTORS AMERICA, INC.

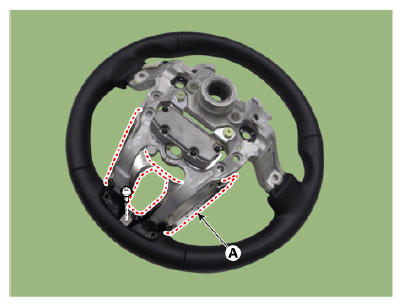

  8. Loosen the screws and then remove the bezel (A).
    G12831514Courtesy of KIA MOTORS AMERICA, INC.
  9. Assemble in the reverse order of disassembly.
