Repair Procedures: Removal

Shift the gear to "N".

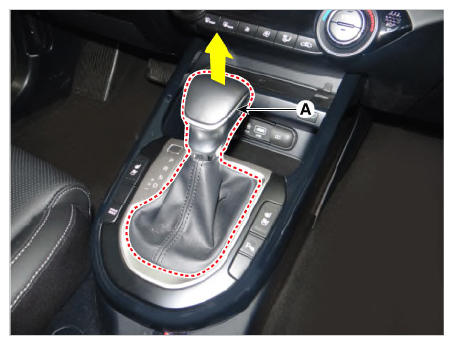

Remove the knob (A) by pulling it in the direction of arrow after removing the boots from the console upper cover.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the floor console assembly.
(Refer to Body - " FLOOR CONSOLE ASSEMBLY ")

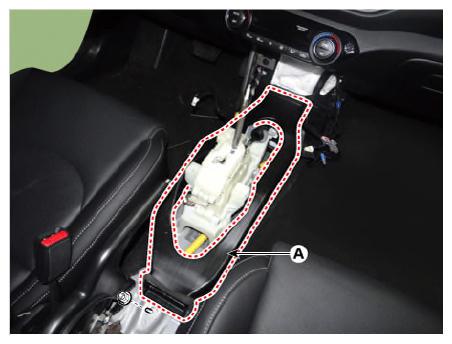

Remove the rear air duct after loosening the mounting nut.

Courtesy of KIA MOTORS AMERICA, INC.

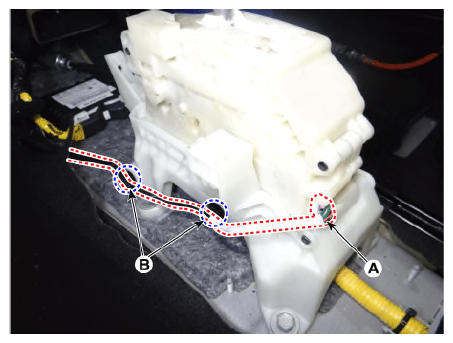

Disconnect the main connector (A) and then remove the wiring mounting clips (B) from the shift lever.

Courtesy of KIA MOTORS AMERICA, INC.

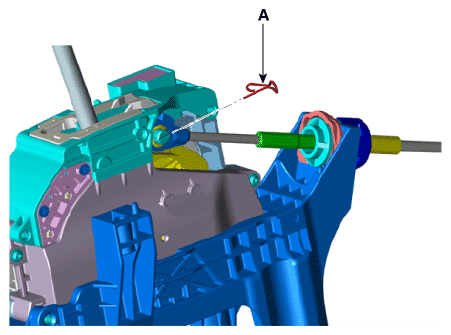

Remove the shift cable from the shift lever pin after removing the snap pin (A).

Courtesy of KIA MOTORS AMERICA, INC.

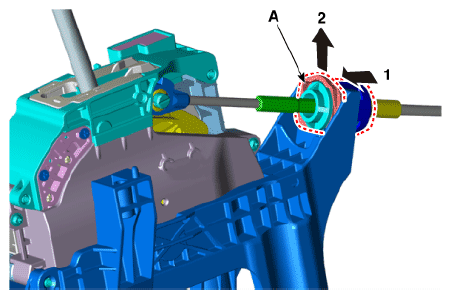

Remove the cable socket (A) from the shift lever.

Courtesy of KIA MOTORS AMERICA, INC.

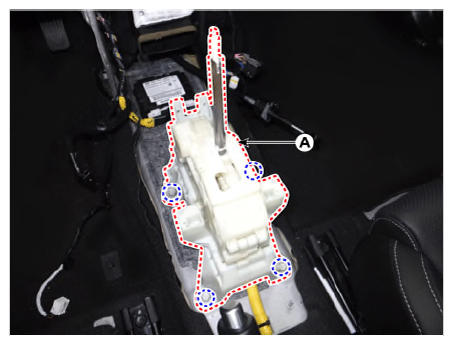

Remove the shift lever (A) after loosening the bolts.
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
