Monitor KDS Data

Inspection Condition	Inspection Procedure	Reference

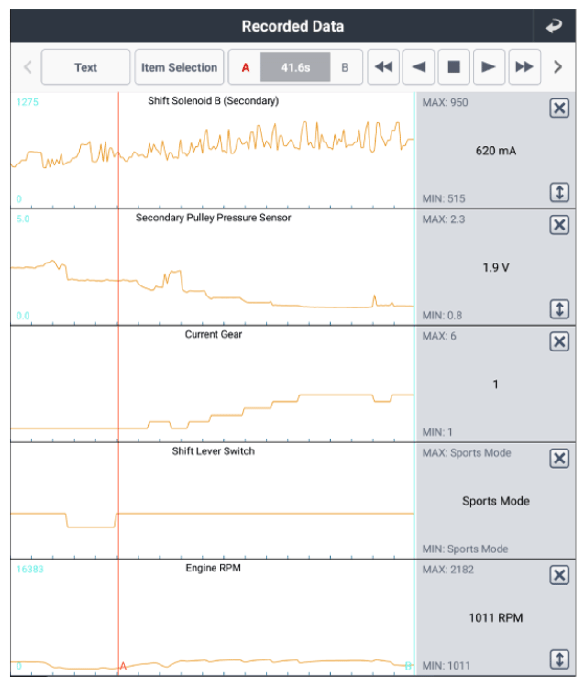

Ignition "ON" Engine "ON" Driving the Vehicle	Connect KDS to Data Link Connector (DLC). Engine "ON" Operate vehicle or system in accordance with enable condition in DTC detecting condition. Monitor selected parameters shown below in "Current Data" with KDS.	Figure

G12865333

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, or damage.
Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

No Good

Go to "WIRING INSPECTION " procedure.
