Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - " FUEL PUMP  ")

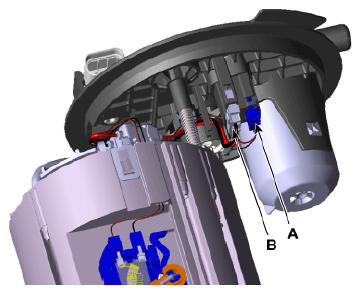

  2. Disconnect the electric pump wiring connector (A) and the fuel sender connector (B).
    G12830337Courtesy of KIA MOTORS AMERICA, INC.

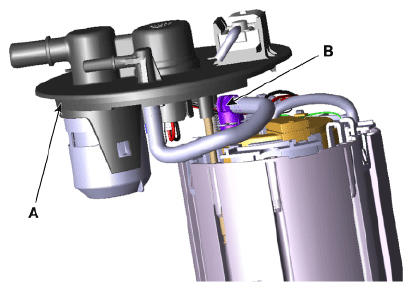

  3. Remove the head assembly (A) after releasing the cushion fixing hooks.
  4. Disconnect the fuel tube quick-connectors (B).
    G12830338Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the fuel sender (A) in the direction of an arrow.
    G12830339Courtesy of KIA MOTORS AMERICA, INC.

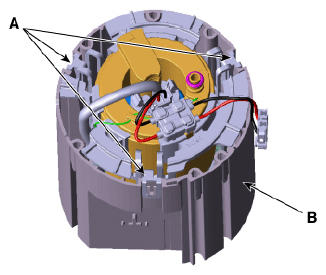

  6. Remove the reservior-cup (B) after releasing the fixing hooks (A).
    G12830340Courtesy of KIA MOTORS AMERICA, INC.

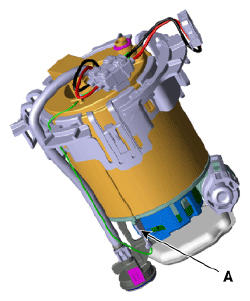

  7. Disconnect the ground (A).
    G12830341Courtesy of KIA MOTORS AMERICA, INC.

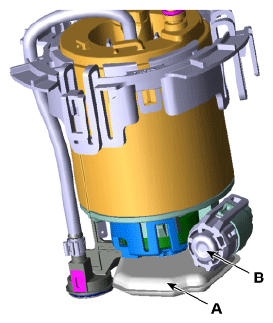

  8. Release the fixing hooks, and then remove the pre-filter (A) and the fuel pressure regulator (B).
    G12830342Courtesy of KIA MOTORS AMERICA, INC.

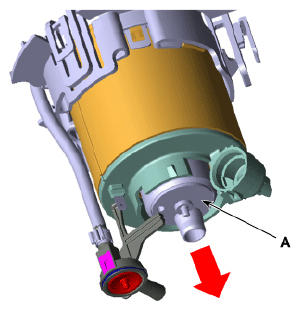

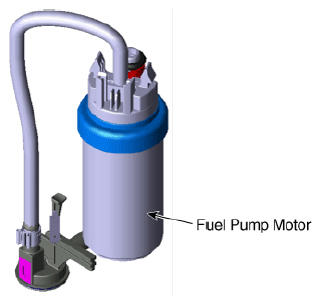

  9. Remove the fuel pump motor (A) in the direction of arrow.
    G12830343Courtesy of KIA MOTORS AMERICA, INC.
    G12830344Courtesy of KIA MOTORS AMERICA, INC.
