Repair Procedures: Installation

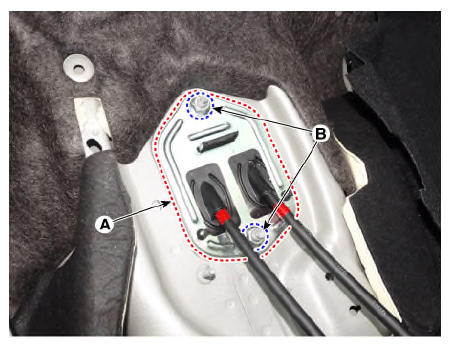

  1. Install the shift cable retainer (A) by tightening nuts (B).

    Tightening torque:

    11.8 - 14.7 N.m (1.2 - 1.5 kgf.m, 8.7 - 10.8 lb.ft)

    G12830440Courtesy of KIA MOTORS AMERICA, INC.
  2. Install the select cable.

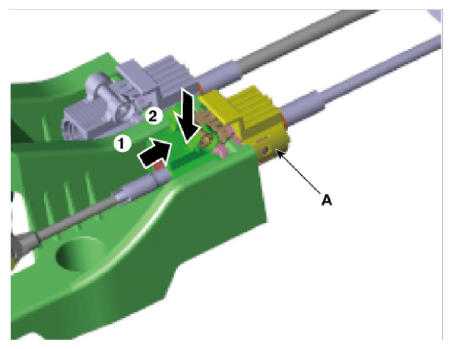

    1. Install the select cable (A) from the shift lever.
      G12830441Courtesy of KIA MOTORS AMERICA, INC.

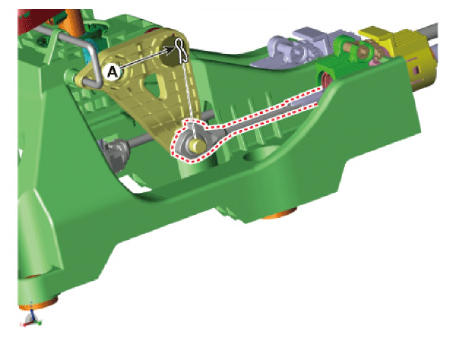

    2. Install the select cable to the lever pin and then insert the snap pin (A).
      G12830442Courtesy of KIA MOTORS AMERICA, INC.
  3. Install the shift cable.

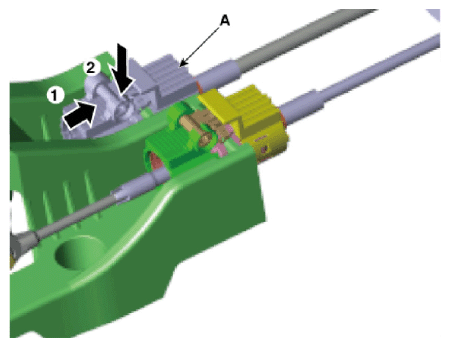

    1. Install the shift cable (A) from the shift lever.
      G12830443Courtesy of KIA MOTORS AMERICA, INC.
    2. Install the shift cable end (A).

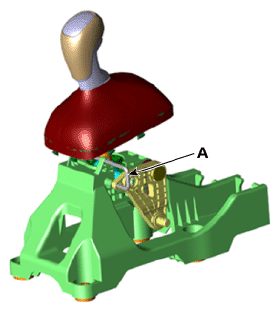

  4. Check that the shift lever and control shaft are placed in the "4th" position and then install the 4th fixing pin (A).
    G12830444Courtesy of KIA MOTORS AMERICA, INC.
  5. Install the control cable.

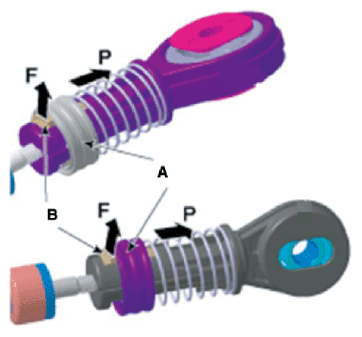

    1. After pulling the holder (A) in the direction of the "P", pull the lock (B) in the direction of the "F".
      G12830445Courtesy of KIA MOTORS AMERICA, INC.

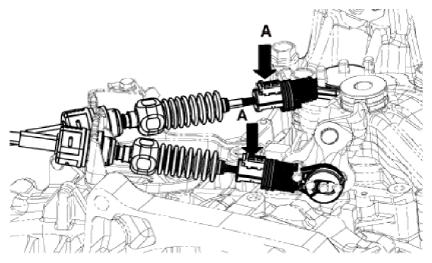

    2. Push the lock (A) after installing the control cable to the control shaft and cable bracket.
      G12830446Courtesy of KIA MOTORS AMERICA, INC.

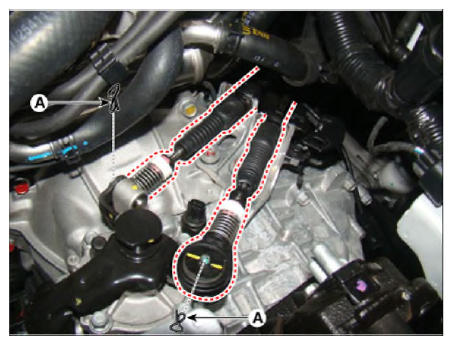

    3. Insert the snap pins (A).
      G12830447Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the 4th fixing pin (A).
    G12830448Courtesy of KIA MOTORS AMERICA, INC.
  7. Check for proper operation of control shaft lever when operated (1st, 2nd, 3rd, 4th, 5th, 6th, R gear).
  8. Install the floor console assembly.

    (Refer to Body - " FLOOR CONSOLE ASSEMBLY  ")

  9. Install the battery and battery tray.

    (Refer to Engine Electrical System - " BATTERY  ")

  10. Install the air cleaner assembly and air duct.

    (Refer to Engine Mechanical System - " AIR CLEANER  ")
