Repair Procedures: Removal

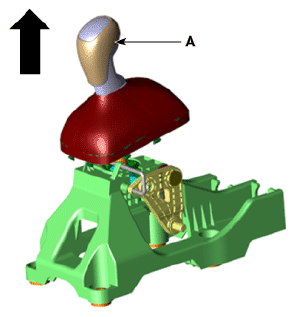

  1. Remove the knob (A) by pulling it in the direction of upward after removing the boots from the console upper cover.
    G12830426Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the floor console assembly.

    (Refer to Body - " FLOOR CONSOLE ASSEMBLY  ")

  3. Remove the select cable.

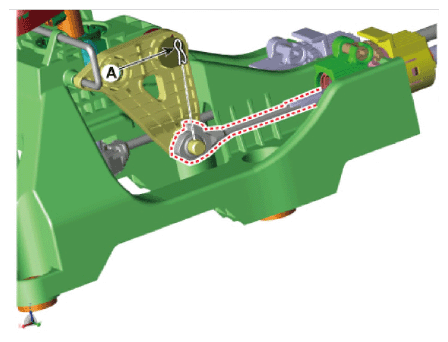

    1. Remove the snap pin (A).
      G12830427Courtesy of KIA MOTORS AMERICA, INC.

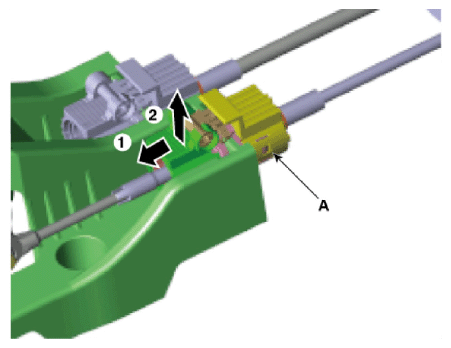

    2. Remove the select cable (A) from the shift lever.
      G12830428Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the shift cable.

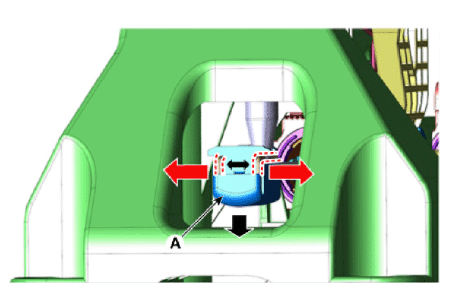

    1. Remove the snap pin (A) in the direction of the arrow.
      G12830429Courtesy of KIA MOTORS AMERICA, INC.
    2. Remove the shift cable (A) from the shift lever.
      G12830430Courtesy of KIA MOTORS AMERICA, INC.

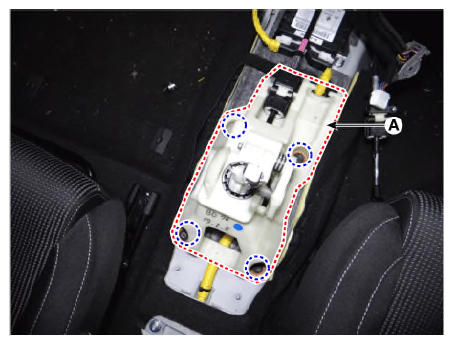

  5. Remove the shift lever assembly (A) after loosening the mounting bolts.

    Tightening torque:

    8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb ft)

    G12830431Courtesy of KIA MOTORS AMERICA, INC.
