Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - " RELEASE RESIDUAL PRESSURE IN FUEL LINE  ").

  2. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

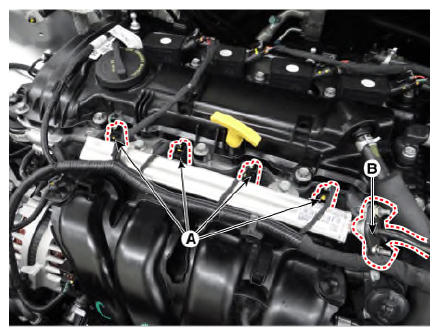

  3. Disconnect the injector connector (A).
  4. Remove the installation nut, and then disconnect the fuel feed tube (B).

    Delivery pipe installation nut (↔ Fuel feed tube):

    3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft)

    G12830363Courtesy of KIA MOTORS AMERICA, INC.

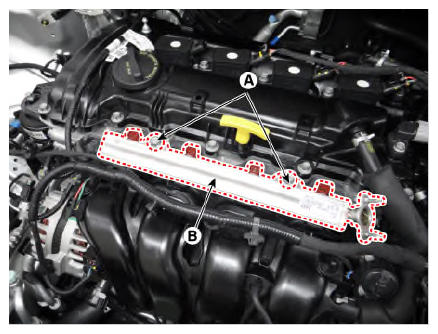

  5. Remove the installation bolt (A), and then remove the delivery pipe & injector assembly (B) from the engine.

    Delivery pipe installation bolt:

    18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)

    G12830364Courtesy of KIA MOTORS AMERICA, INC.

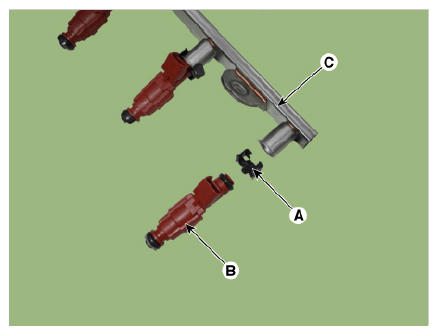

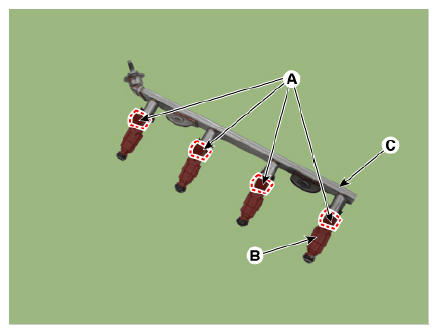

  6. Remove the fixing clip (A), and then separate the injector (B) from the delivery pipe. (C)
    G12830365Courtesy of KIA MOTORS AMERICA, INC.
    G12830366Courtesy of KIA MOTORS AMERICA, INC.
