Repair Procedures: Removal

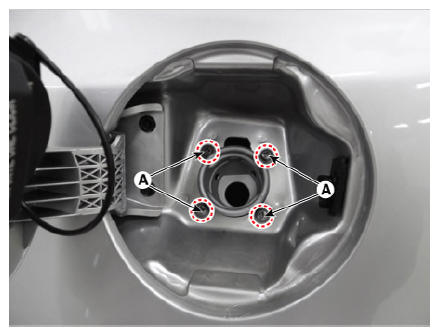

  1. Open the fuel filler door and unfasten the filler-neck assembly mounting screw (A).
    G12830359Courtesy of KIA MOTORS AMERICA, INC.

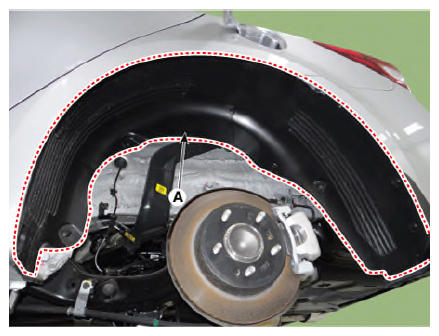

  2. Remove the rear-LH wheel, tire, and the inner wheel house (A).
    G12830360Courtesy of KIA MOTORS AMERICA, INC.

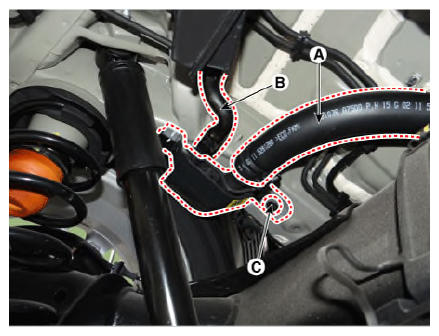

  3. Disconnect the fuel filter hose (A) and the ventilation hose (B).
  4. Remove the filler-neck assembly from the vehicle after removing the bracket mounting bolts (C).

    Filler-neck assembly bracket mounting bolt:

    7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

    G12830361Courtesy of KIA MOTORS AMERICA, INC.

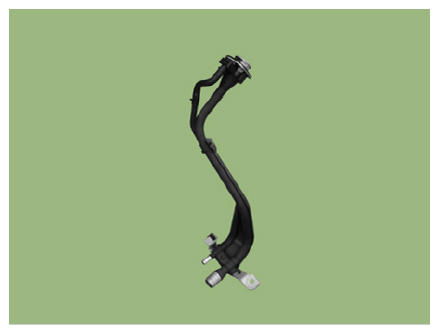

    G12830362Courtesy of KIA MOTORS AMERICA, INC.
