Front Power Window Motor

  1. Disconnect the negative battery terminal.
  2. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

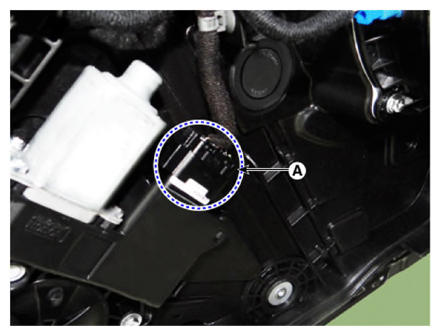

  3. Disconnect the power window motor connector (A).
    G13128986Courtesy of KIA MOTORS AMERICA, INC.

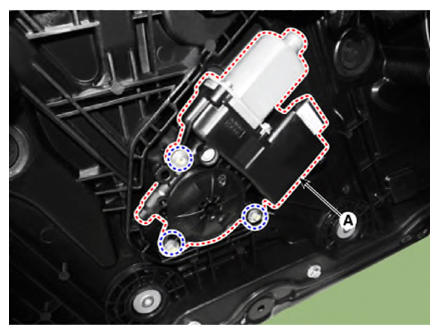

  4. Remove the front power window motor (A) after loosening the mounting bolts.
G13128987Courtesy of KIA MOTORS AMERICA, INC.
