Rear Power Window Motor

  1. Disconnect the negative battery terminal.
  2. Remove the rear door trim.

    (Refer to Body - "REAR DOOR TRIM ")

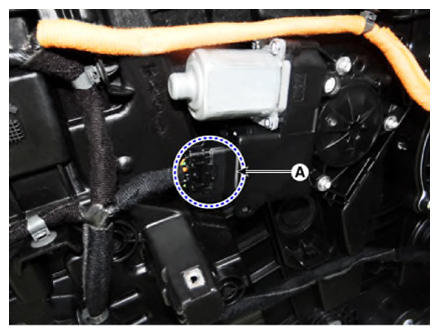

  3. Disconnect the power window motor connector (A).
    G13128988Courtesy of KIA MOTORS AMERICA, INC.

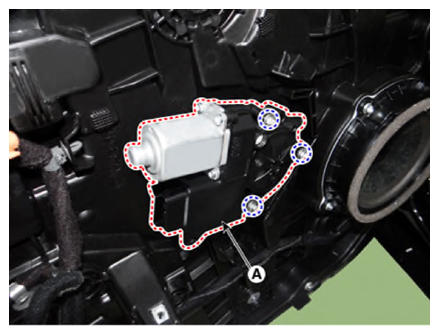

  4. Remove the rear power window motor (A) after loosening the mounting bolts.
G13128989Courtesy of KIA MOTORS AMERICA, INC.
