Repair Procedures: Replacement
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

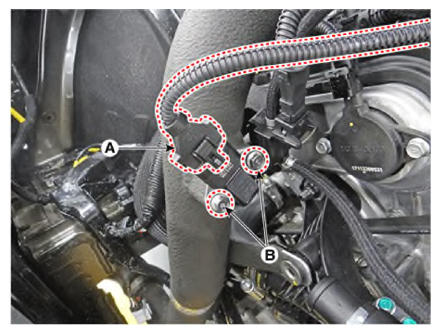

- Disconnect the boost pressure sensor connector (A).
- Remove the mounting bolts (B), and then remove the sensor from the intercooler outlet pipe.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
- Install in the reverse order of removal.
NOTE:
- Install the component to the specified torques.
- Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
- Insert the sensor in the installation hole and be careful not to damage it.
