[Bank 2/Exhaust]
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the cylinder head cover.
(Refer to Engine Mechanical System - "CYLINDER HEAD COVER ")

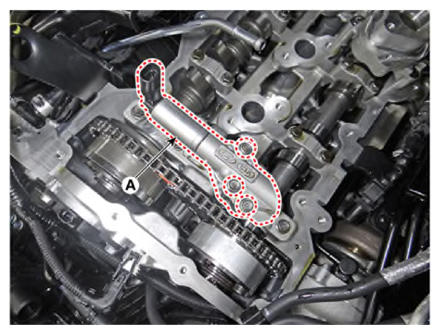

- Remove the installation bolts, and then remove the valve (A) from the engine.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
- Install in the reverse order of removal.
NOTE:
- Install the component to the specified torque.
- Note that internal damage may occur if the component drops. In this case, inspect it before installation.
- Apply the engine oil to the valve O-ring.
- Exactly distinguish the color of the valve and harness connectors in banks 1 and 2 when installing, or the engine will operate abnormally (Refer to the table below).
