[Bank 1/Intake]
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")

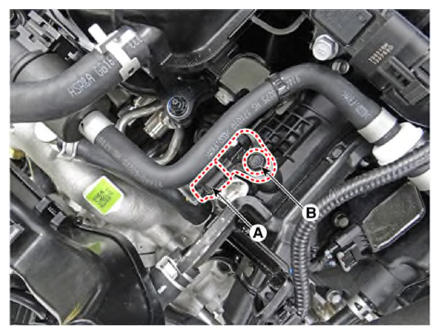

- Disconnect the camshaft position sensor connector (A).
- Remove the camshaft position sensor after loosening the mounting bolt (B).
Tightening torque:
6.8 - 9.8 N.m (0.7 - 1.0 kgf.m, 5.0 - 7.2 lb.ft)
- Install in the reverse order of removal.
NOTE:
- Install the component to the specified torques.
- Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.
- Apply the engine oil to the O-ring.
- Insert the sensor into the installation hole and be careful not to damage it during the installation.
- Be careful not to damage the sensor housing and the connector.
- Be careful not to damage the O-ring.
