Repair Procedures: Replacement

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the rear-left wheel & tire and wheel house cover.

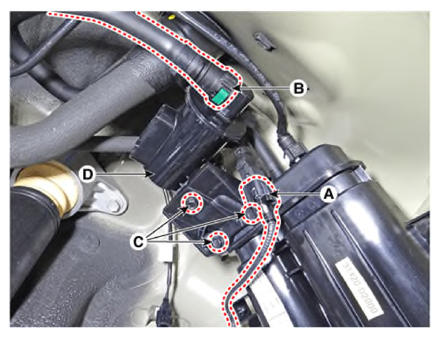

  3. Disconnect the canister close valve connector (A).
  4. Disconnect the vent hose quick-connector (B).
  5. Remove the fuel tank air filter & CCV assembly (D) after removing the bolts (C).
    G13143406Courtesy of KIA MOTORS AMERICA, INC.

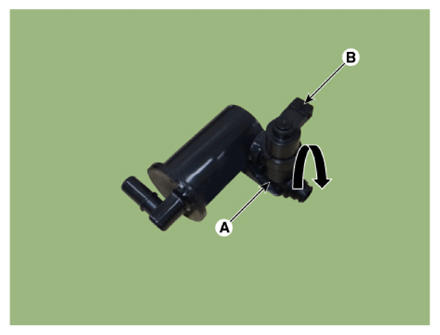

  6. Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter after rotating it in the direction of the arrow in the figure.
    G13143407Courtesy of KIA MOTORS AMERICA, INC.
    G13143408Courtesy of KIA MOTORS AMERICA, INC.
  7. Install in the reverse order of removal.
NOTE:
  • Install the component with the specified torques.
  • Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
