Electric Waste Gate Actuator (EWGA)
>>
Schematic Diagrams
>>
Circuit Diagram
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

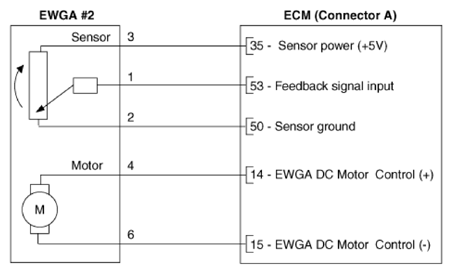

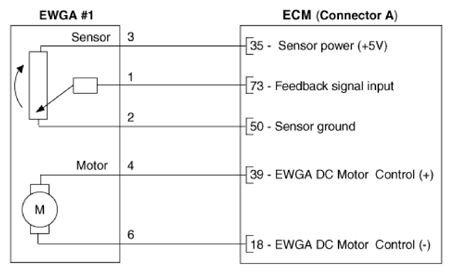

Circuit Diagram: Notes
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
