Repair Procedures: Replacement

Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

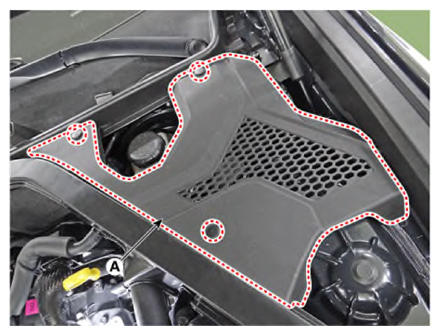

Remove the engine side cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

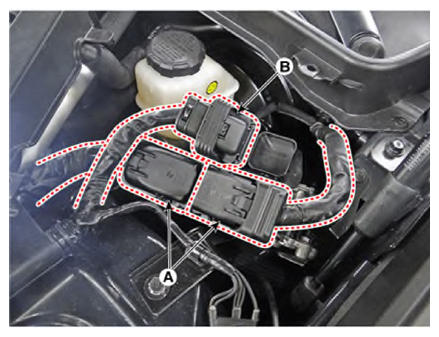

Disconnect the ECM connector (A) and TCM connector.

Courtesy of KIA MOTORS AMERICA, INC.

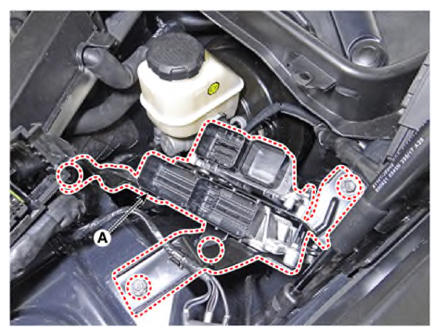

Remove the ECM & TCM bracket assembly (A) after loosening the mounting bolts and nuts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

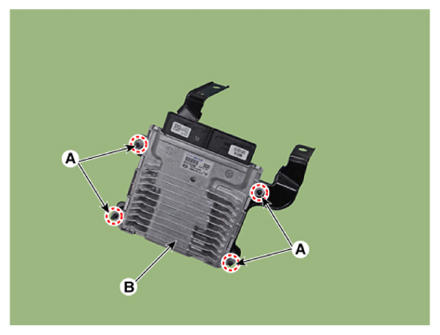

Remove the TCM (B) after loosening the mounting nuts (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

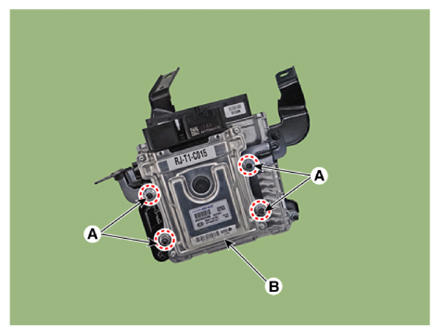

Remove the ECM (B) after loosening the mounting nuts (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
