Repair Procedures: Replacement

Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
Remove the water center pipe.
(Refer to Engine Mechanical System - "WATER TEMPERATURE CONTROL ASSEMBLY ")

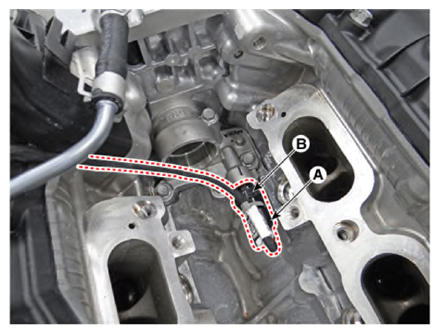

Disconnect the connector (A), and then remove the CVVT oil temperature sensor (B).
Tightening torque:

14.7 - 21.6 N.m (1.5 - 2.2 kgf.m, 10.8 - 15.9 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
